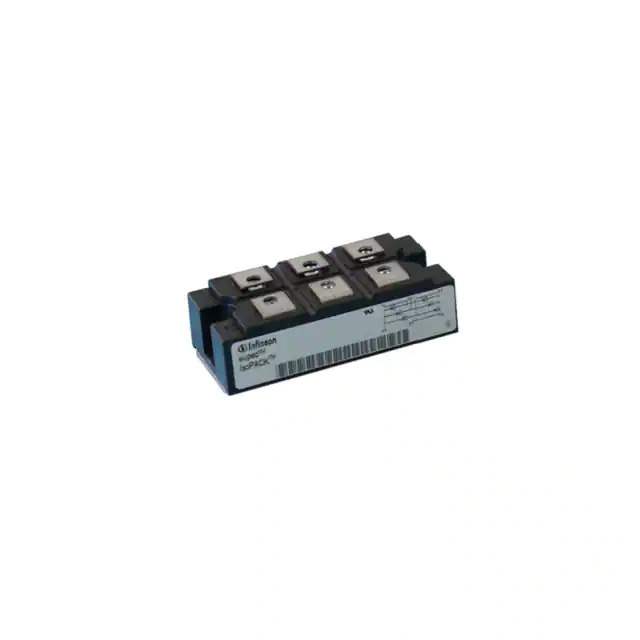

DDB6U215N16LHOSA1 Real Image
Same model may have multiple batches, images only for reference.

DDB6U215N16LHOSA1

Part No DDB6U215N16LHOSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE GP 1600V / Diode Array 3 Independent 1600 V Chassis Mount Module
Datasheet
DDB6U215N16LHOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Infineon Technologies
Package Tray
Product Status Active
Diode Configuration 3 Independent
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Voltage - Forward (Vf) (Max) @ If 1.61 V @ 300 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 mA @ 1600 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DDB6U215
Standard Package 3 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 846927-DDB6U215N16LHOSA1
Ultra Librarian 3D Model Ultra Librarian DDB6U215N16LHOSA1 CAD Model

Description

The 846927-DDB6U215N16LHOSA1 is a diode array module from Infineon Technologies.

  • Category: Discrete Semiconductor Products - Diodes - Rectifiers
  • Recovery Speed: Standard Recovery (over 500ns)
  • Current Rating: Over 200mA
  • Package: Tray
  • Quantity: 3 pieces
  • Technology: Standard
  • Voltage Rating (DC Reverse): 1600V
  • Forward Voltage: 1.61V @ 300A
  • Reverse Leakage Current: 10mA @ Rated Voltage
  • Operating Temperature: -40°C to 150°C
  • Diode Configuration: Three Independent Diodes
  • Mounting Type: Chassis Mount
  • Package Type: Module
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.10.0080
