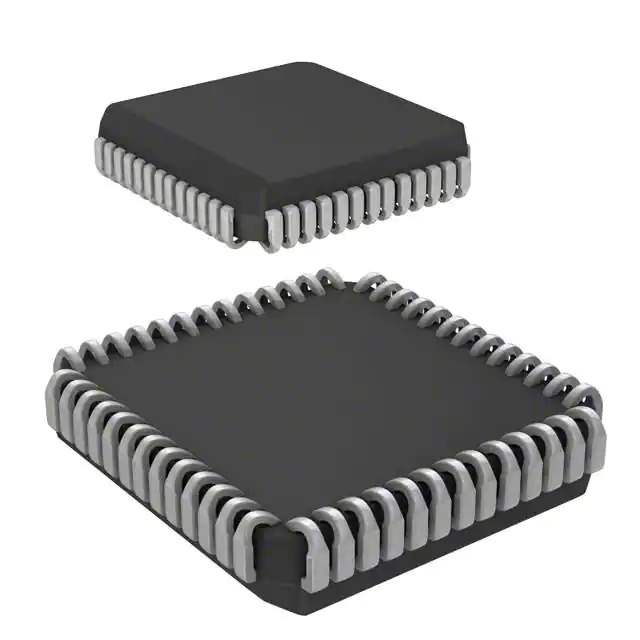

CY7C136-55JXCT Real Image
Same model may have multiple batches, images only for reference.

CY7C136-55JXCT

Part No CY7C136-55JXCT
Manufacturer Infineon Technologies
Catalog Memory
Description IC SRAM 16KBIT PARALLEL 52PLCC
Datasheet
CY7C136-55JXCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Infineon Technologies
Package Tape & Reel
Product Status Obsolete
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Dual Port, Asynchronous
Memory Size 16Kbit
Memory Organization 2K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 55ns
Access Time 55 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 52-LCC (J-Lead)
Supplier Device Package 52-PLCC (19.13x19.13)
Base Product Number CY7C136
Standard Package 350 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 957372-CY7C136-55JXCT
Ultra Librarian 3D Model Ultra Librarian CY7C136-55JXCT CAD Model

Description

The CY7C136-55JXCT is a dual-port SRAM memory chip from Infineon Technologies.

  • Memory Size: 16Kbit
  • Access Time: 55ns
  • Voltage Supply Range: 4.5V to 5.5V
  • Package: 52-LCC
  • Memory Interface: parallel
  • Operating Temperature: 0°C to 70°C
  • Manufacturer: Infineon Technologies
