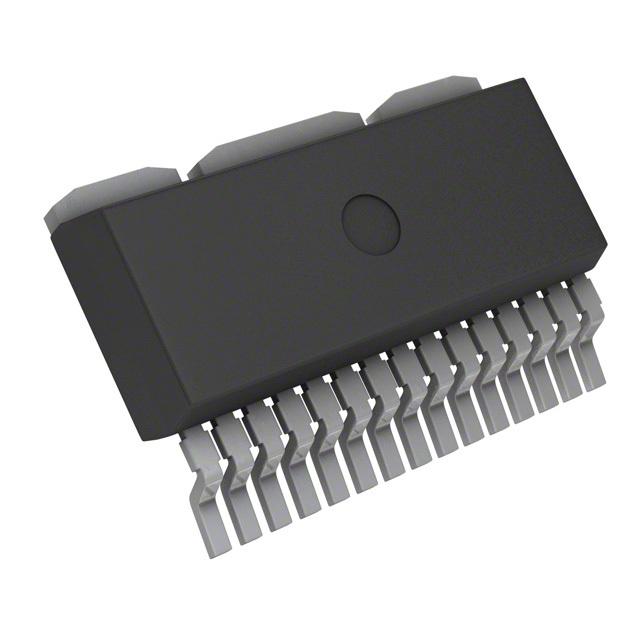

BTS7811KDTMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BTS7811KDTMA1

Part No BTS7811KDTMA1
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC BRIDGE DRIVER PAR TO263-15
Datasheet
BTS7811KDTMA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Applications DC Motors, General Purpose
Load Type Inductive
Technology DMOS
Rds On (Typ) 14 mOhm LS, 26 mOhm HS
Current - Peak Output 42A
Supply Voltage - Operating 1.8 V to 42 V
Voltage - Load 1.8 V to 42 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Status Flag
Fault Protection Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting SMD (SMT)
Case / Package P-TO263-15
Win Source Part Number 1024933-BTS7811KDTMA1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian BTS7811KDTMA1 CAD Model

Description

The Infineon Technologies BTS7811KDTMA1 is a DMOS integrated circuit suitable for use in DC motors and general purpose applications.

  • Voltage Load: 1.8 V to 42 V
  • Load Type: Inductive
  • Fault Protection: Open Load Detect, Over Temperature, Short Circuit, and UVLO
  • Status Flag: Yes
  • Mounting Technology: Surface Mount
  • Case/Package: P-TO263-15
  • Quantity per Package: 500
  • Peak Output Current: 42A
  • Typical Rds On: 14 mOhm LS and 26 mOhm HS
