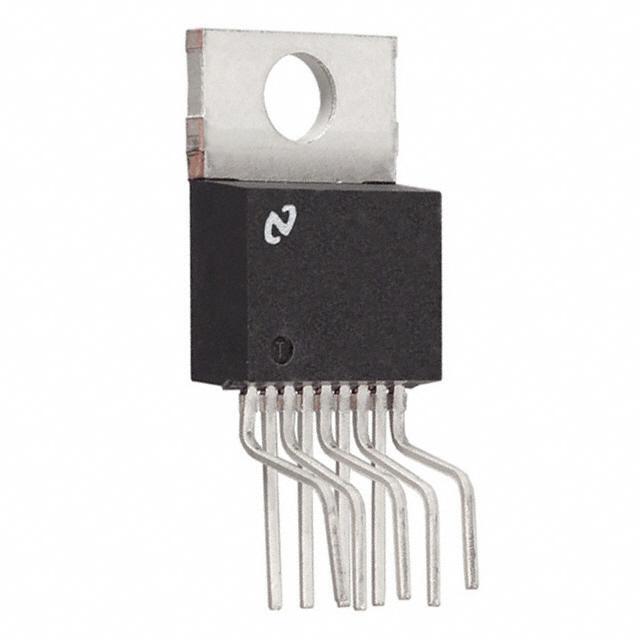

Product Overview: LM2469TA/NOPB by Texas Instruments

The LM2469TA/NOPB is a high-performance monolithic triple channel cathode-ray tube (CRT) driver designed by Texas Instruments to provide a cost-effective solution for high-resolution color monitor applications. This integrated circuit (IC) is specifically engineered to amplify the video signals and drive the cathode of each color in a CRT, enabling vivid and sharp color representation on the screen.

Key Features

• High Bandwidth: With a bandwidth of 80MHz, the LM2469TA/NOPB ensures that high-speed video signals are transmitted with precision, making it ideal for high-resolution displays.
• High Output Current: The device can deliver up to 7mA of output current, providing the necessary drive for CRT displays.
• Thermal Protection: It includes an internal thermal shutdown mechanism that protects the IC from overheating, enhancing the reliability and longevity of the product.
• Low Power Consumption: Designed with power efficiency in mind, this driver IC helps reduce the overall power consumption of the monitor.

Applications

The LM2469TA/NOPB is suitable for a wide range of applications, including:

• High-resolution color monitors
• Display terminals
• Graphics displays
• Professional video systems

Product Benefits

This IC stands out for its ability to maintain signal integrity even at high frequencies, which is crucial for reproducing sharp and clear images on a CRT display. As a result, monitors equipped with the LM2469TA/NOPB can achieve superior image quality, making them suitable for graphics-intensive tasks and professional video applications.

Moreover, the inclusion of thermal protection ensures that the device operates within safe temperature limits, preventing damage from excessive heat and contributing to the overall durability of the monitor. The low power consumption feature of the LM2469TA/NOPB also means that monitors will be more energy-efficient, leading to cost savings over time and a reduced environmental impact.

Overall, Texas Instruments' LM2469TA/NOPB is a robust and reliable solution for driving CRT displays, offering both performance and efficiency to meet the demands of modern high-resolution video applications.
