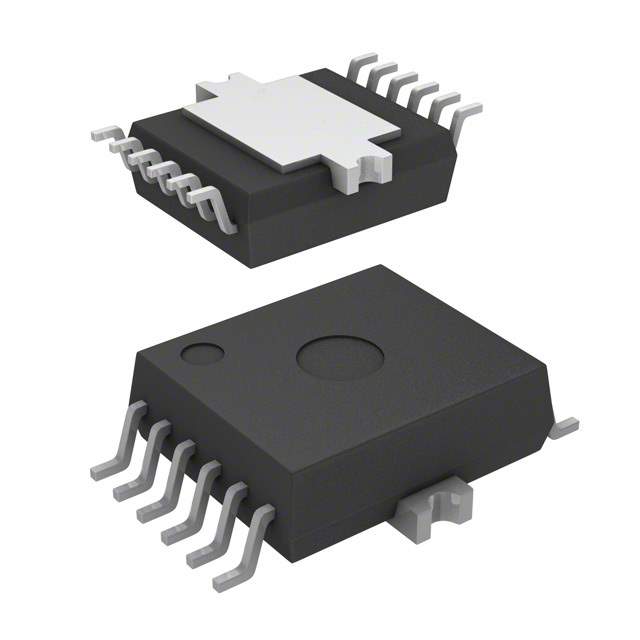

BTS5241L Real Image
Same model may have multiple batches, images only for reference.

BTS5241L

Part No BTS5241L
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Smart High-Side Current Limit Switch / IC HIGH SIDE PWR SWITCH PDSO-12
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 2
Output Type N-Channel
Voltage - Load 4.5 V to 28 V
Supply Voltage - Operating Not Required
Current - Output (Max) 5.7A
Rds On (Typ) 19 mOhm
Input Type Non-Inverting
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-DSO-12-2
Win Source Part Number 201558-BTS5241L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BTS5241
Introduction Date February 01, 2004
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BTS5241L CAD Model

Description

Description

The BTS5241L smart high-side power switch is designed for reliability in automotive applications, integrating advanced protections for optimal performance.

Applications

  • Fuel pump control
  • Automotive relay replacement
  • Electronic ignition systems

Features and Benefits

  • Comprehensive protection and diagnostics features
  • High thermal performance for extended operational life
  • Compact design suitable for tight spaces

The BTS5241L is engineered to deliver exceptional reliability and efficiency in critical automotive systems.
