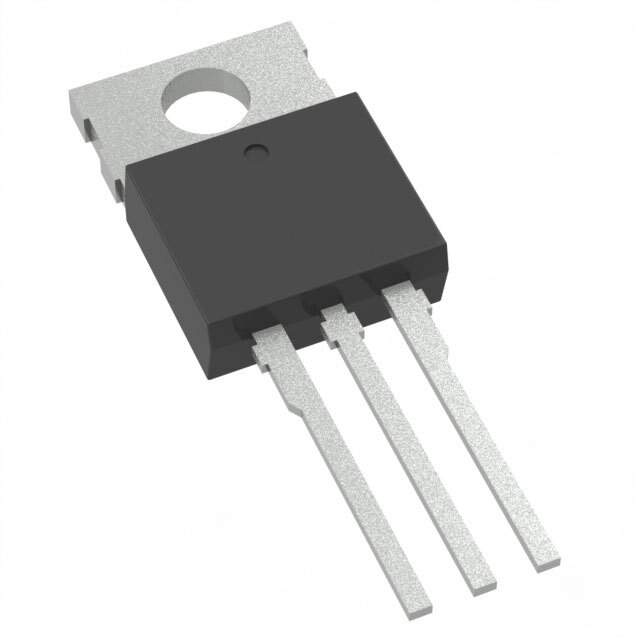

BTS149NKSA1 Real Image
Same model may have multiple batches, images only for reference.

BTS149NKSA1

Part No BTS149NKSA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC LOW SIDE POWER SWITCH TO220-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 60V (Max)
Supply Voltage - Operating Not Required
Current - Output (Max) 19A
Rds On (Typ) 14 mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package P-TO220-3
Win Source Part Number 1024858-BTS149NKSA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BTS149NKSA1 CAD Model

Description

The Infineon Technologies BTS149NKSA1 is a general-purpose N-channel MOSFET with a maximum output current of 19A. Bold the product name (e.g., BAV99S,135 → BTS149NKSA1) and manufacturer (e.g., Nexperia USA Inc. → Infineon Technologies).

  • Input Types: Non-Inverting
  • Fault Protections: Current Limiting, Over-Temperature, and Over-Voltage
  • Package: P-TO220-3
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Voltage Load: Up to 60V
  • On-Resistance: 14 mOhm (Typical)
