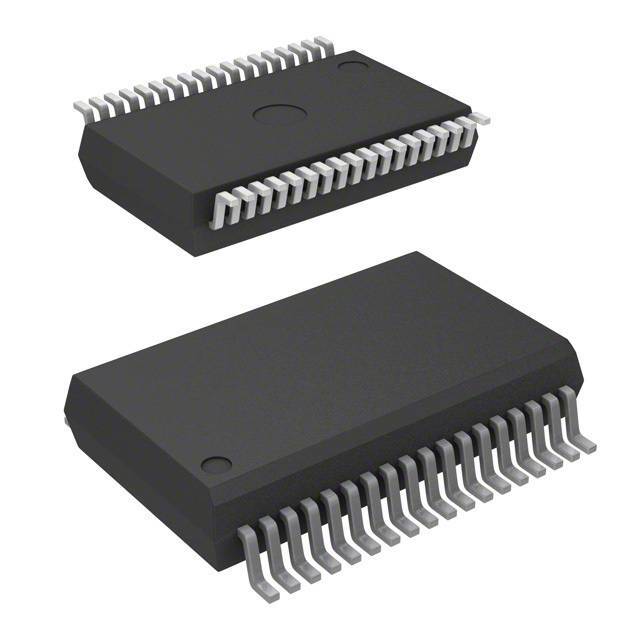

BTM7745GXUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BTM7745GXUMA1

Part No BTM7745GXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 36DSO / H-Bridge Motor Driver Automotive 36-Pin DSO T/R
Datasheet
BTM7745GXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series TrilithIC
Packaging Reel package
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Applications General
Output Current 12A
Operating Supply Voltage 5.5 V ~ 28 V
Voltage - Load 5.5 V ~ 28 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 36-BSSOP (0.295", 7.50mm Width)
Win Source Part Number 770567-BTM7745GXUMA1
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name BTM7745
Introduction Date May 28, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BTM7745GXUMA1 CAD Model

Description

The Infineon Technologies BTM7745GXUMA1 is a fully integrated driver and control power stage with two half-bridge outputs. It has an output current of 12A and operates over a temperature range of -40°C to 150°C. The BTM7745GXUMA1 is compatible with brushed DC motor types and is mounted on a 36-BSSOP (0.295", 7.50mm Width) package. It has an operating supply voltage of 5.5V to 28V, and is ideal for use in general applications.

  • Output Current: 12A
  • Operating Temperature Range: -40°C to 150°C
  • Package: 36-BSSOP (0.295", 7.50mm Width)
  • Operating Supply Voltage: 5.5V to 28V
