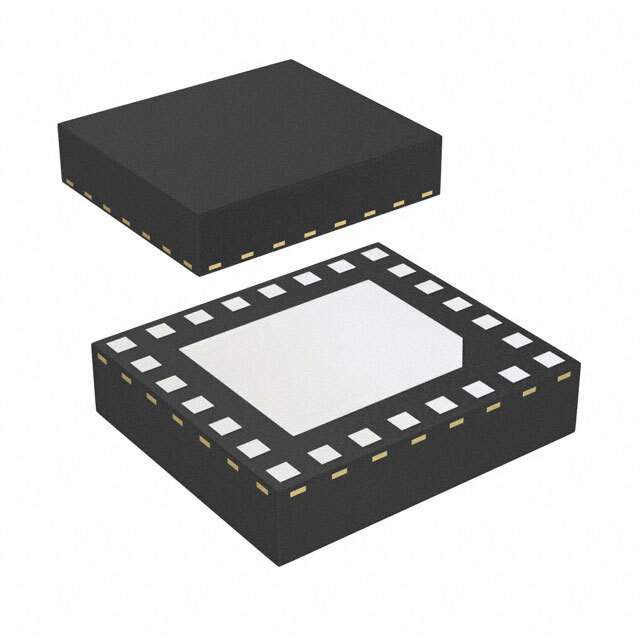

The BGSF1717MN26 E6327 is an RF switch from Infineon Technologies. It is designed to provide high performance in various wireless communication applications, offering low insertion loss and high isolation to ensure signal integrity.

Applications

• Antenna Switching in Wireless Devices
• RF Front-End Modules
• Band Selection
• Filter Switching

Features

• Low Insertion Loss: Minimizes signal attenuation through the switch.
• High Isolation: Prevents signal leakage between different RF paths.
• High Linearity: Ensures minimal signal distortion.
• Small Footprint: Facilitates compact designs.
• Fast Switching Speed: Enables rapid switching between RF paths.

Benefits

• Enhanced System Performance: High isolation and low insertion loss improve overall system performance.
• Improved Signal Integrity: Minimizes signal degradation in RF systems.
• Extended Battery Life: Efficient switching reduces power consumption.
• Compact Designs: Small package size allows for integration in small form-factor devices.
• Versatile Use: Can be implemented in a wide range of RF applications.

Additional Details

The BGSF1717MN26 E6327 usually comes in a surface-mount package, suitable for automated assembly processes. Its datasheet specifies critical electrical characteristics, including insertion loss, isolation, return loss, and switching time. These parameters are important in designing RF systems. The control interface is typically digital, allowing easy control with a microcontroller. Thermal management should be considered for reliable operation, especially at higher power levels. For comprehensive design information, refer to the Infineon datasheet.
