The BGS1414MN20E6327 is a versatile Single Pole Four Throw (SP4T) RF switch from Infineon Technologies, designed for a wide range of wireless communication applications. This switch offers excellent performance characteristics, including low insertion loss, high isolation, and high linearity, making it ideal for use in multi-band and multi-mode wireless systems.

Applications:

• Mobile phones and smartphones
• Wireless LAN (WLAN) devices
• Bluetooth modules
• GPS receivers
• RF front-end modules

Features:

• Single Pole Four Throw (SP4T) configuration
• Low insertion loss
• High isolation
• High linearity (IIP3)
• Small form factor
• Lead-free and RoHS compliant

Benefits:

• Enables flexible signal routing in RF systems
• Minimizes signal loss and maximizes signal strength
• Reduces interference and improves signal integrity
• Improves overall system performance
• Suitable for compact designs

Technical Specifications:

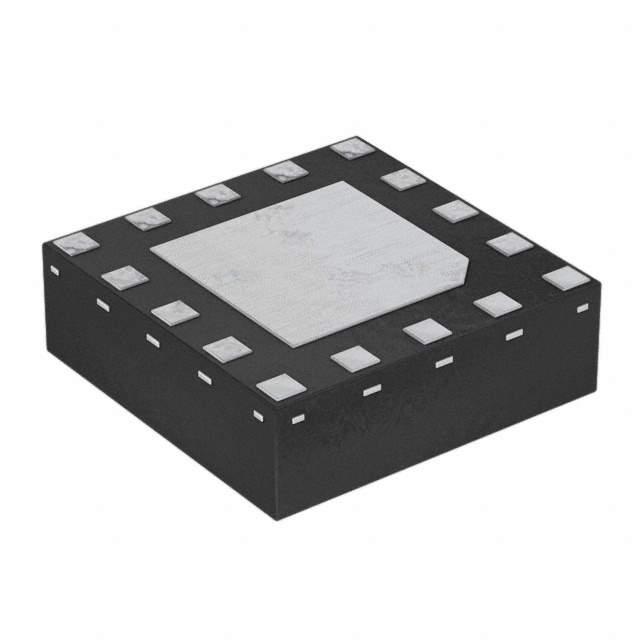

The BGS1414MN20E6327 is designed to operate over a wide frequency range, typically from 0.1 GHz to 6 GHz. It features a typical insertion loss of 0.4 dB at 2 GHz and a high isolation of 30 dB at 2 GHz. The switch operates with a supply voltage of 1.8V to 3.3V and consumes minimal current. It is housed in a compact TSNP-20 package, making it suitable for space-constrained applications. The device is also characterized by its high linearity, ensuring minimal signal distortion. Its fast switching speed allows for efficient signal routing and minimizes the impact on data throughput. The integrated control logic simplifies the design and implementation of the switch in various RF systems. It is compliant with RoHS and lead-free standards, making it environmentally friendly.

The BGS1414MN20E6327 SP4T RF switch from Infineon Technologies provides a reliable solution for RF signal routing in wireless communication systems. Its excellent performance characteristics, combined with its small form factor and compliance with environmental regulations, make it an ideal choice for demanding applications.
