Same model may have multiple batches, images only for reference.

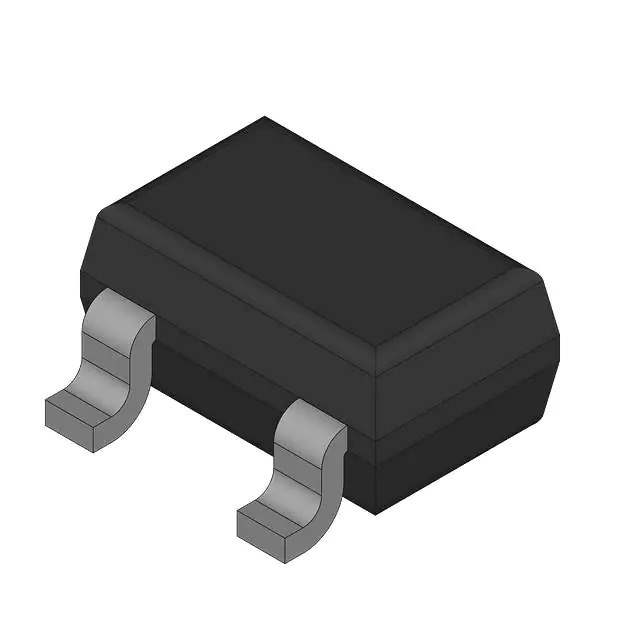

BAT64-05WH6327 Real Image
Same model may have multiple batches, images only for reference.

BAT64-05WH6327

Part No BAT64-05WH6327
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description RECTIFIER DIODE, SCHOTTKY
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Infineon Technologies
Package Bulk
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) (per Diode) 120mA
Voltage - Forward (Vf) (Max) @ If 750 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 30 V
Operating Temperature - Junction 150°C
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package PG-SOT323-3
Base Product Number BAT64
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 709629-BAT64-05WH6327
Ultra Librarian 3D Model Ultra Librarian BAT64-05WH6327 CAD Model

Description

The 709629-BAT64-05WH6327 is a diode array in the Diodes category.

  • Type: Small signal diode
  • Maximum Current: 200mA
  • Manufacturer: Infineon Technologies
  • Package: Bulk
  • Standard Package: 3,000 pieces
  • Type: Schottky diode
  • Maximum DC Reverse Voltage: 40V
  • Forward Voltage: 750mV @ 100mA
  • Reverse Recovery Time: 5ns
  • Reverse Leakage Current: 2μA @ 30V
  • Operating Temperature: Up to 150°C
  • Diode Configuration: 1 pair common cathode
  • Mounting Type: Surface Mount
  • Package/Case: SC-70, SOT-323
  • Supplier Device Package: PG-SOT323-3
  • HTSUS Code: 8541.10.0070
  • Status: Active
