Same model may have multiple batches, images only for reference.

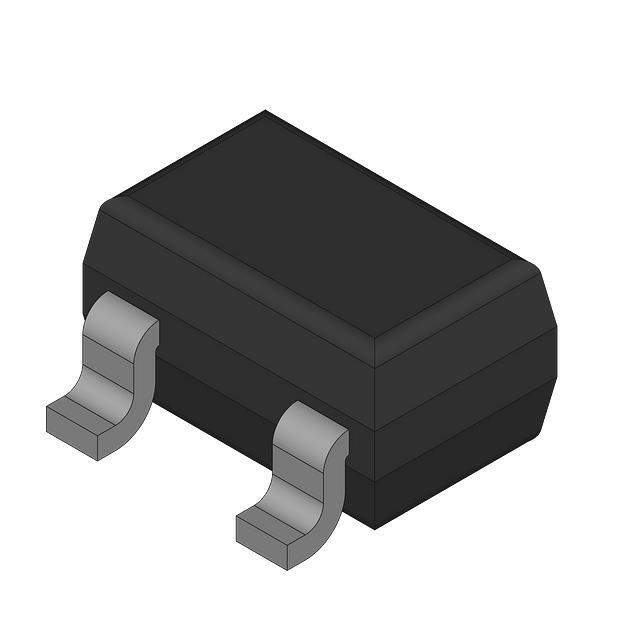

BAS4006WH6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BAS4006WH6327XTSA1

Part No BAS4006WH6327XTSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 40V SOT323 / Diode Array 1 Pair Common Anode Schottky 40 V 120mA (DC) Surface Mount SC-70, SOT-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Infineon Technologies
Packaging Reel - TR
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) (per Diode) 120mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 40 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 100 ps
Current - Reverse Leakage @ Vr 1 µA @ 30 V
Operating Temperature - Junction 150°C (Max)
Mounting Surface Mount
Case / Package SC-70, SOT-323
Supplier Device Package PG-SOT323
Base Product Number BAS4006
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAS 40-06W H6327,BAS 40-06W H6327-ND,BAS4006WH6327XTSA1TR-ND,448-BAS4006WH6327XTSA1DKR,BAS4006WH6327XTSA1TR,448-BAS4006WH6327XTSA1CT,2156-BAS4006WH6327XTSA1,SP000749764,448-BAS4006WH6327XTSA1TR,IFEINFBAS4006WH6327XTSA1
Standard Package 3,000
Win Source Part Number 1325134-BAS4006WH6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BAS4006WH6327XTSA1 CAD Model

Description

The Infineon Technologies BAS4006WH6327XTSA1 is a Schottky diode rectifier array in the Discrete Semiconductor Products category.

  • Manufacturer: Infineon Technologies
  • Voltage DC Reverse: 40 V
  • Voltage Forward: 1 V @ 40 mA
  • Diode Configuration: 1 Pair Common Anode
  • Average Rectified Current: 120mA (DC)
  • Mounting: Surface-mount
  • Supplier Device Package: PG-SOT323
  • Operating Temperature Range: Up to 150°C
  • ROHS3: Compliant
