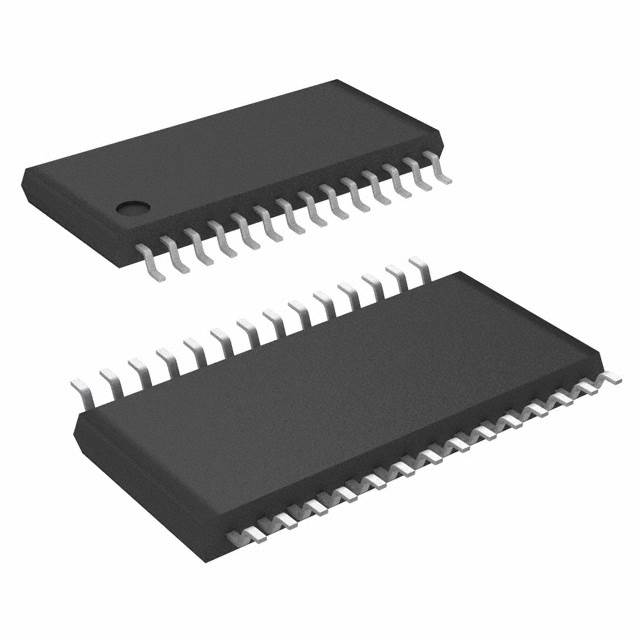

6ED003L02F2XUMA1

Part No 6ED003L02F2XUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRVR 600V 3PHASE 28TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 6
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage - Operating 13 V to 17.5 V
Logic Voltage - VIL, VIH 1.1V, 1.7V
Input Type Inverting
High Side Voltage - Max (Bootstrap) 620V
Rise and Fall Time 60ns, 26ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TSSOP-28
Win Source Part Number 123887-6ED003L02F2XUMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6ED003L02F2XUMA1 CAD Model

Description

Product Overview

The 6ED003L02F2XUMA1 is a high-quality component tailored for electronic applications requiring precision and reliability. Its sophisticated design ensures consistent performance across various uses.

Features and Benefits

  • Precision engineering for accurate functionality
  • Enhanced reliability for critical applications
  • User-friendly integration for ease of use
  • Compact form factor facilitating versatile installation

Applications

  • Power management systems
  • Control systems
  • Data acquisition
  • Instrumentation equipment

Additional Details

The component's design prioritizes robustness and adaptability, meeting stringent regulatory standards. It's an ideal choice for professionals seeking components that deliver high precision without compromising on reliability.
