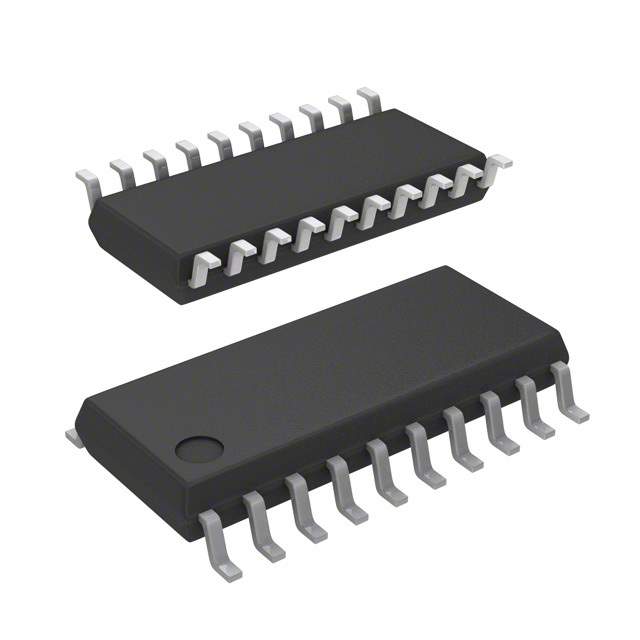

2ED020I12FIXUMA1

Name: 2ED020I12FIXUMA1
Brand: Infineon Technologies
SKU: 1036362
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2ED020I12FIXUMA1
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE DSO18-2 / Half-Bridge Gate Driver IC Inverting PG-DSO-18-2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr	Infineon Technologies
Package	Tape & Reel
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	14V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	1A, 2A
Input Type	Inverting
High Side Voltage - Max (Bootstrap)	1200 V
Rise / Fall Time (Typ)	20ns, 20ns
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	18-SOIC (0.295", 7.50mm Width)
Supplier Device Package	PG-DSO-18-2
Base Product Number	2ED020
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	2ED020I12-FICT,2156-2ED020I12FIXUMA1,2ED020I12-FIDKR,IFEINF2ED020I12FIXUMA1,2ED020I12-FITR-ND,2ED020I12FIXUMA1TR,SP000265782,2ED020I12FI,2ED020I12FIXUMA1CT,2ED020I12-FI,2ED020I12-FITR,2ED020I12FIXUMA1DKR,2ED020I12-FICT-ND,2ED020I12-FIDKR-ND
Standard Package	1,000
Win Source Part Number	1036362-2ED020I12FIXUMA1
Ultra Librarian 3D Model	Ultra Librarian 2ED020I12FIXUMA1 CAD Model

Description

The 1036362-2ED020I12FIXUMA1 from Infineon Technologies is an integrated circuit used in PMIC - Gate Drivers.

Manufacturer: Infineon Technologies
Application: PMIC - Gate Drivers
Logic Voltage: VIL, VIH: 0.8V, 2V
Voltage Supply: 14V ~ 18V
Temperature Range: -40°C to 150°C (TJ)
Number of Drivers: Two
Driven Configuration: Half-bridge
Packaging: Tape & reel
Standard Package: 1,000
Supply and Demand Status: Balanced
