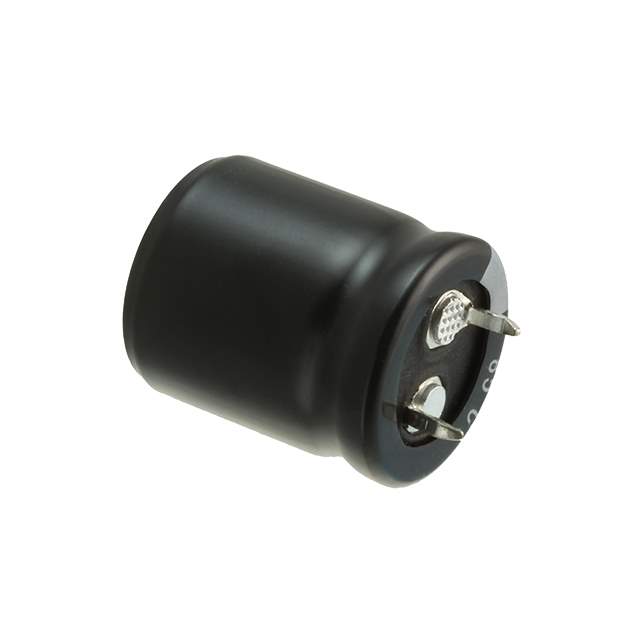

337LBB400M2ED Real Image
Same model may have multiple batches, images only for reference.

337LBB400M2ED

Part No 337LBB400M2ED
Manufacturer Illinois Capacitor
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 400V SNAP
Datasheet
337LBB400M2ED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Illinois Capacitor
Series LBB
Packaging Bulk
Capacitance 330μF
Tolerance ±20%
Voltage Rating 400V
ESR (Equivalent Series Resistance) 753.57 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 2.18A @ 120Hz
Ripple Current - High Frequency 3.2046A @ 10kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Maximum) 1.260" (32.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 761721-337LBB400M2ED
Popularity Medium
Supply and Demand Status Balance
Family Name LBB
Introduction Date August 13, 2010
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 337LBB400M2ED CAD Model

Description

The Illinois Capacitor LBB series 761721-337LBB400M2ED is a radial, can-snap-in capacitor.

  • Capacitance: 330μF
  • Voltage: 400V
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • ESR: 753.57 mOhm @ 120Hz
  • Polarized: Yes
  • Ripple Current: 2.18A @ 120Hz, 3.2046A @ 10kHz
  • Operating Temperature: -40°C ~ 85°C
  • Lifetime @ Temp: 3000 Hrs @ 85°C
  • Estimated EOL date: 2028
  • Popularity: Medium
