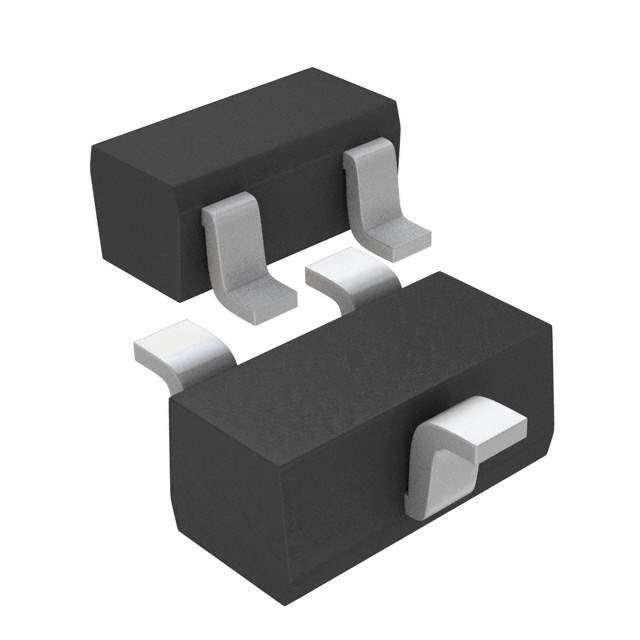

RB715WTL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) (per Diode) 30mA
Voltage - Forward (Vf) (Max) @ If 370mV @ 1mA
Current - Reverse Leakage @ Vr 1μA @ 10V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package EMD3
Win Source Part Number 027169-RB715WTL
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RB715WTL CAD Model

Description

The RB715WTL is a Schottky diode from Rohm Semiconductor, with a Win Source Part Number of 027169.

  • Mounting: surface-mount device (SMD)
  • Packaging: reel
  • Voltage Rating: 40V
  • Forward Voltage: 370mV @ 1mA
  • Current Rating: 30mA
  • Reverse Leakage Current: 1μA @ 10V
  • Configuration: 1-pair common cathode
  • Operating Temperature: 125°C
  • Category: discrete semiconductor product
