The IDT7130LA55CB is a high-speed 1K x 8 Dual-Port Static RAM (SRAM) device manufactured by Integrated Device Technology (IDT). This SRAM is designed to provide simultaneous access to memory locations from two independent ports. This makes it suitable for applications requiring high bandwidth and concurrent data access.

Applications:

• Networking equipment
• Telecommunications systems
• Image processing
• Video processing
• Shared memory in multiprocessing systems

Features:

• High-speed access time: 55ns
• Dual-port operation: Allows simultaneous reads and writes from two independent ports
• 1K x 8 memory organization
• Interrupt Flag provides indication of flag register status
• Busy Flag provides indication that the port is busy
• On-chip arbitration logic
• Low power consumption

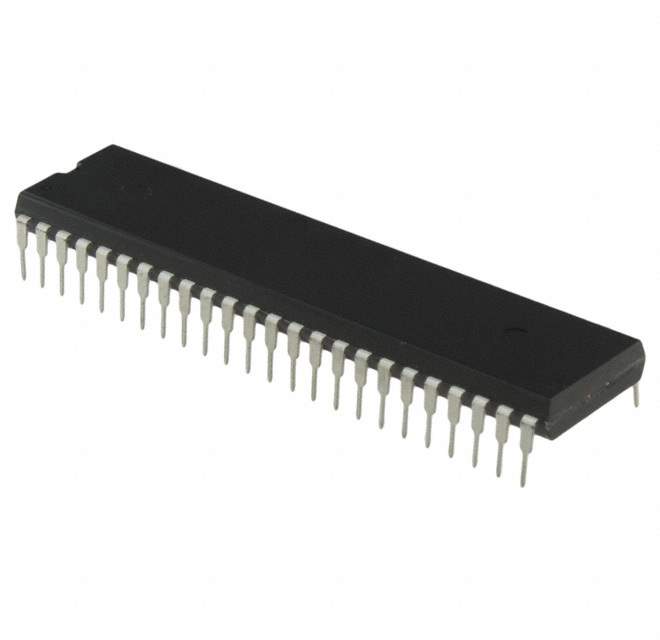

• Available in a ceramic DIP package

Benefits:

• Enables high-performance data transfer and processing due to fast access times.
• Facilitates concurrent data access, improving system throughput and efficiency.
• Simplifies system design with on-chip arbitration logic.
• Reduces overall system power consumption, making it suitable for energy-efficient applications.

Additional Details:

The IDT7130LA55CB is designed with on-chip arbitration logic to resolve conflicts when both ports attempt to access the same memory location simultaneously. This feature simplifies system design and ensures data integrity. The dual-port architecture allows for true concurrent operation, enabling high-speed data transfer and processing. Interrupts and busy flags aid in indicating the status of the read and write operations.

This device is commonly used in applications where data needs to be accessed and processed quickly and efficiently. Its dual-port capability makes it particularly well-suited for networking and telecommunications systems, where multiple processors or controllers need to access shared memory resources.
