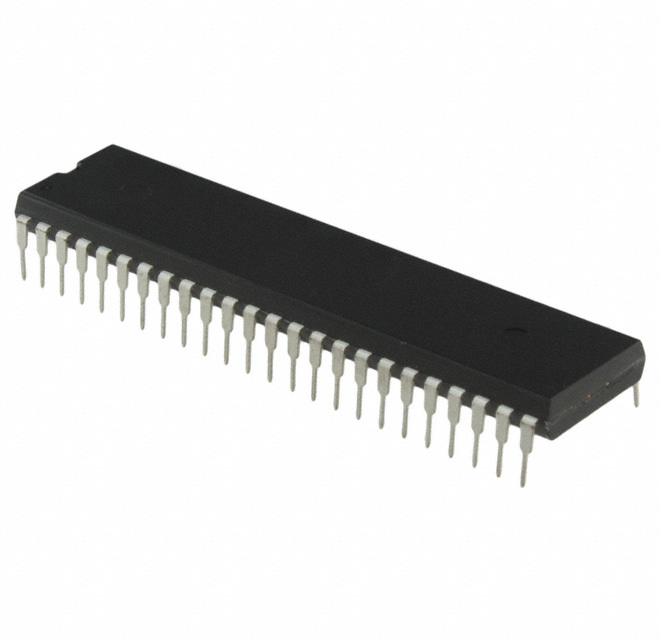

Same model may have multiple batches, images only for reference.
7132SA100P IDT, Integrated Device Technology Inc
Same model may have multiple batches, images only for reference.

7132SA100P

Part No 7132SA100P
Manufacturer IDT, Integrated Device Technology Inc
Catalog SRAM
Description IC SRAM 16KBIT 100NS 48DIP / SRAM Chip Async Dual 5V 16K-bit 2K x 8 100ns 48-Pin PDIP W Tube
Datasheet
7132SA100P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Dual Port, Asynchronous
Memory Size 16Kb (2K x 8)
Write Cycle Time - Word, Page 100ns
Access Time 100ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Style Through Hole
Package 48-DIP (0.600", 15.24mm)
Manufacturer Package 48-PDIP
Win Source Part Number 776553-7132SA100P
Popularity Medium
Supply and Demand Status Balance
Family Name 7132SA
Introduction Date October 01, 1996
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 7132SA100P CAD Model

Description

The IDT Integrated Circuit (IC) is a dual-port, asynchronous SRAM device that has a 48-DIP package and is mounted using through-hole technology.

  • Memory Size: 16Kb (2K x 8)
  • Operating Supply Voltage: 4.5V to 5.5V
  • Access Time: 100ns
  • Memory Interface: Parallel
  • Family: 7132SA
  • Alternative Parts: CY7C132-55PC, CY7C132-35PI, CY7C132-45PC, CY7C132-55PI
  • Introduction Date: October 1, 1996
  • Popularity: Medium
