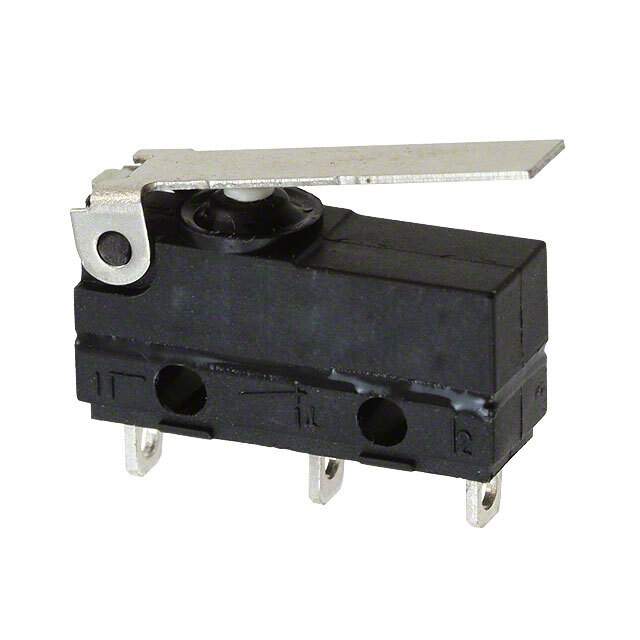

ZW10F15CD1 Real Image
Same model may have multiple batches, images only for reference.

ZW10F15CD1

Part No ZW10F15CD1
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
ZW10F15CD1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series ZW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP00
Operating Force 66gf
Release Force 13gf
Pretravel 0.188" (4.8mm)
Differential Travel 0.028" (0.7mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -40°C ~ 120°C
Operating Position 0.345" (8.8mm)
Electrical Life 10,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number ZW10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1314787-ZW10F15CD1
Ultra Librarian 3D Model Ultra Librarian ZW10F15CD1 CAD Model

Description

The ZW10F15CD1 is a limit switch manufactured by Honeywell Sensing and Productivity Solutions.

  • Series: ZW
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever and Straight
  • Operating Force: 66gf
  • Release Force: 13gf
  • Pretravel: 0.188" (4.8mm)
  • Differential Travel: 0.028" (0.7mm)
  • Overtravel: 0.039" (1.0mm)
  • Operating Position: 0.345" (8.8mm)
  • Mounting: Chassis Mount
  • Ingress Protection: IP00
  • Voltage Rating: 125V
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 10,000 cycles
  • Temperature Range: -40°C to 120°C
  • Manufacturer: Honeywell Sensing and Productivity Solutions
