Same model may have multiple batches, images only for reference.

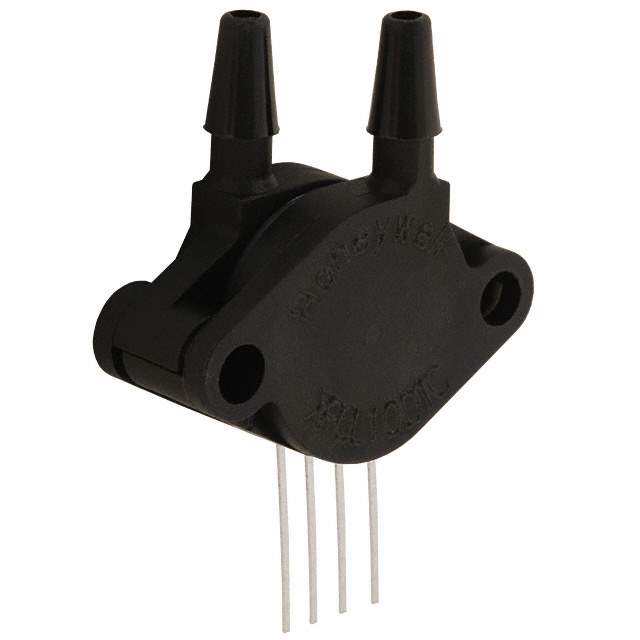

XPC01DTC Real Image
Same model may have multiple batches, images only for reference.

XPC01DTC

Part No XPC01DTC
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR DIFF VACUUM GAUGE 1PSI / Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.19" (4.83mm) Tube, Dual 0 mV ~ 18 mV (12V) 4-SIP Module
Datasheet
XPC01DTC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 18 mV (12V)
Accuracy ±1%
Voltage - Supply 3V ~ 16V
Port Size Male - 0.19" (4.83mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 3PSI (20.68kPa)
Temperature Range - Operating -25°C ~ 85°C
Case / Package 4-SIP Module
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-XPC01DTC,480-2679-5
Standard Package 5
Win Source Part Number 1336664-XPC01DTC
Ultra Librarian 3D Model Ultra Librarian XPC01DTC CAD Model

Description

The Honeywell Sensing and Productivity Solutions XPC01DTC pressure sensor is a high-quality electronic component that offers a pressure range of 1PSI and an output of 0mV to 18mV (12V).

  • Pressure Range: 1PSI
  • Output: 0mV to 18mV (12V)
  • Applications: Pressure Measurement and Control, Board Mount
  • Output Type: Wheatstone Bridge
  • Temperature Compensation: Yes
  • Tolerance: ±1%
  • Pressure Type: Differential
  • Port Style: Dual Port, Barbed Male 0.19” (4.83mm) Tube
  • Operating Temperature: -25°C to 85°C
