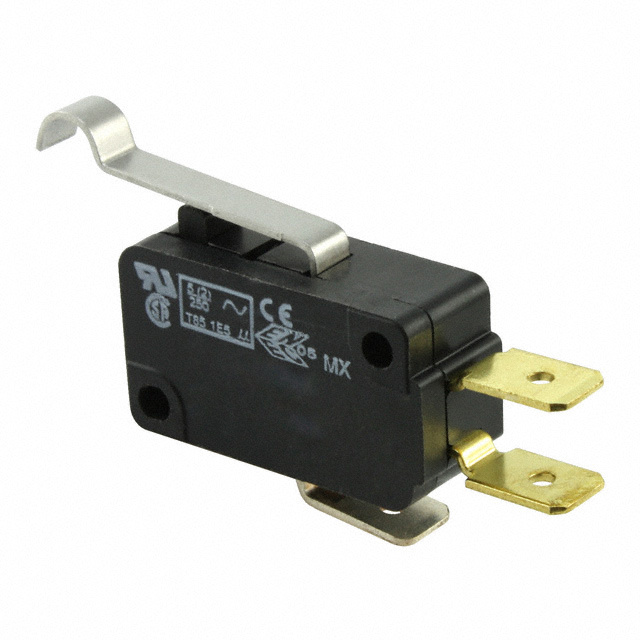

Same model may have multiple batches, images only for reference.
V7-5F17D8-336 Honeywell – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

V7-5F17D8-336

Part No V7-5F17D8-336
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 2.000gf
Operating Position 0.600" (15.2mm)
Pretravel 0.470" (11.9mm)
Differential Travel 0.100" (2.54mm)
Overtravel 0.300" (7.6mm)
Mechanical Life 10,000,000 Cycles
Electrical Life 100,000 Cycles
Temperature Range - Operating -40°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1552158-V7-5F17D8-336
