Same model may have multiple batches, images only for reference.

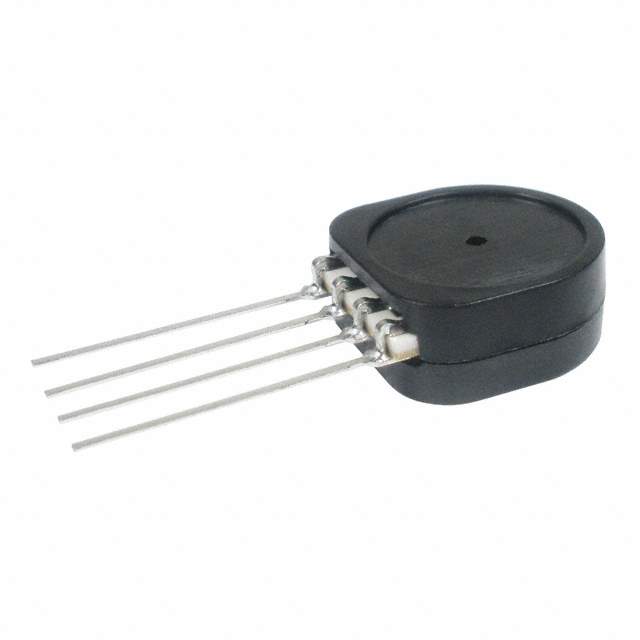

SSCSSNT060PAAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSSNT060PAAA5

Part No SSCSSNT060PAAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 60PSI (413.69kPa) Absolute 0.5 V ~ 4.5 V 4-SIP Module
Datasheet
SSCSSNT060PAAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 60PSI (413.69kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 120PSI (827.37kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSSNT
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234696-SSCSSNT060PAAA5
Ultra Librarian 3D Model Ultra Librarian SSCSSNT060PAAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions electronic component is a TruStability® SSC series pressure sensor/transducer.

  • Win Source Part Number: 1234696-SSCSSNT060PAAA5
  • Termination Style: PC Pin
  • Features: Amplified output with temperature compensation
  • Package: Bulk
  • Application: Board Mount
  • Standard Package: 20
  • Output: Analog Voltage, 0.5V~4.5V
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Operating Pressure: 60PSI(413.69kPa)
  • Port Style: None
  • Maximum Pressure: 120PSI(827.37kPa)
  • Voltage Supply: 4.75V~5.25V
  • Package/Case: 4-SIP Module
  • Temperature Range: -40°C~85°C
