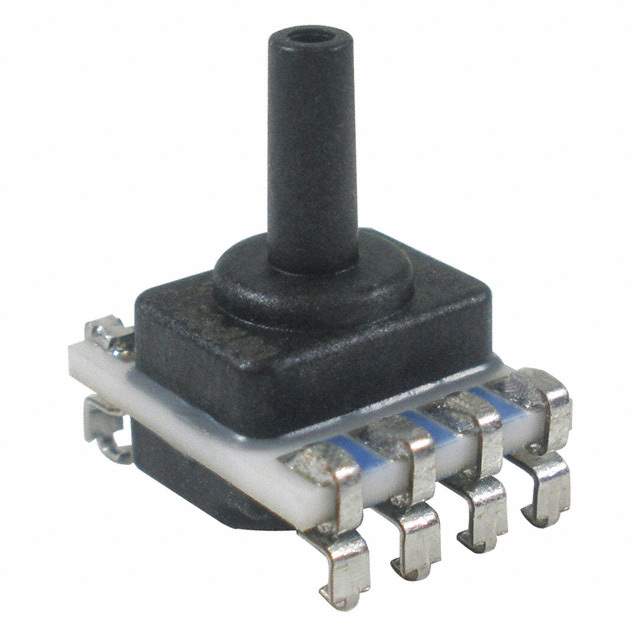

SSCMLND001BG6A3T Real Image
Same model may have multiple batches, images only for reference.

SSCMLND001BG6A3T

Part No SSCMLND001BG6A3T
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 14.5PSI (100kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 12 b 8-SMD, J-Lead, Top Port
Datasheet
SSCMLND001BG6A3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 14.5PSI (100kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 29.01PSI (200kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead, Top Port
Supplier Device Package 8-SMT
Base Product Number SSCMLND
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234462-SSCMLND001BG6A3T
Ultra Librarian 3D Model Ultra Librarian SSCMLND001BG6A3T CAD Model

Description

The Honeywell Sensing and Productivity Solutions TruStability® SSC series is a Pressure Sensor that provides Vented Gauge pressure type.

  • Pressure Type: Vented Gauge
  • Operating Pressure: 14.5PSI (100kPa)
  • Maximum Pressure: 29.01PSI (200kPa)
  • Package: 8-SMD, J-Lead, Top Port
  • Port Size: male - 0.1" (2.47mm) tube
  • Port Style: barbless
  • Output Type: I2C
  • Output: 12 b
  • Temperature Compensated: yes
  • Accuracy: ±0.25%
  • Operating Temperature: -40°C to 85°C
  • HTSUS: 9026.20.4000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
