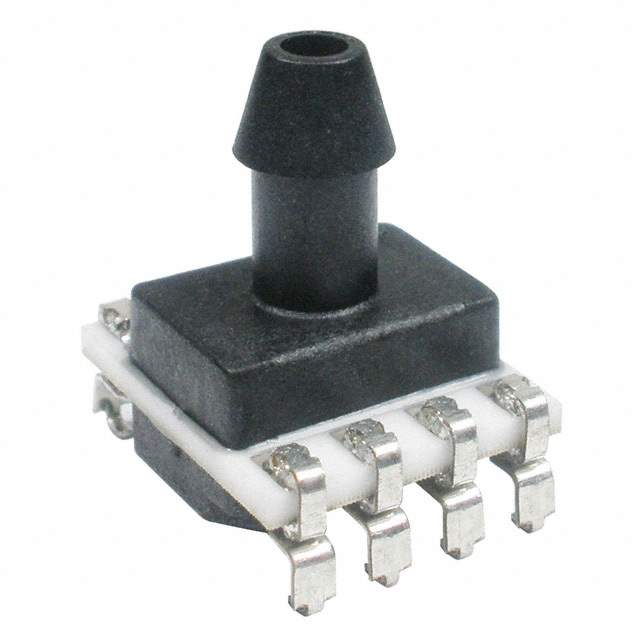

The SSCMANN600MGAA3 is a pressure sensor from Honeywell's TruStability® Silicon Ceramic (SSC) series. These sensors are designed to provide cost-effective and reliable pressure sensing for a wide array of applications. Specifically, the SSCMANN600MGAA3 is a media-isolated, amplified, and compensated pressure sensor.

Applications:

• Medical: Respiratory therapy equipment, ventilators, and oxygen concentrators.
• Industrial: Pressure transmitters, pneumatic systems, and process control.
• HVAC: Building automation systems, variable air volume (VAV) systems, and filter monitoring.
• Instrumentation: Pressure gauges, data loggers, and calibration equipment.
• Transportation: Vehicle diagnostics, brake systems, and engine management.

Features:

• Pressure Range: 0 to 600 mbar (0 to 60 kPa, 0 to 8.7 psi) gauge
• Media Isolated: Allows use with a variety of fluids and gases.
• Amplified Output: Provides a high-level signal, simplifying integration.
• Compensated: Temperature compensated for accurate measurements over a wide temperature range.
• Compact Size: Designed for use in space-constrained applications.
• Excellent Accuracy: Provides precise and repeatable pressure readings.

Benefits:

• Versatile: Suitable for a wide range of applications due to its media isolation.
• Easy Integration: Amplified output simplifies connection to microcontrollers and other electronic systems.
• High Accuracy: Compensated output ensures reliable performance across varying temperatures.
• Durable: Robust design for long-term reliability in demanding environments.
• Cost-Effective: Provides a balance of performance and value.

Additional Details:

The SSCMANN600MGAA3 is a gauge pressure sensor, which means it measures pressure relative to ambient atmospheric pressure. The media isolation feature protects the sensor from corrosive or conductive fluids and gases. The amplified output provides a ratiometric analog voltage that is proportional to the applied pressure. The sensor is internally temperature compensated, minimizing the effects of temperature variations on the output signal. This sensor is commonly used in applications that require accurate and reliable pressure measurements in harsh or challenging environments. The small size and robust design make it a popular choice for a variety of industrial and medical applications. The ratiometric output scales with the supply voltage; therefore, a stable supply voltage is recommended.
