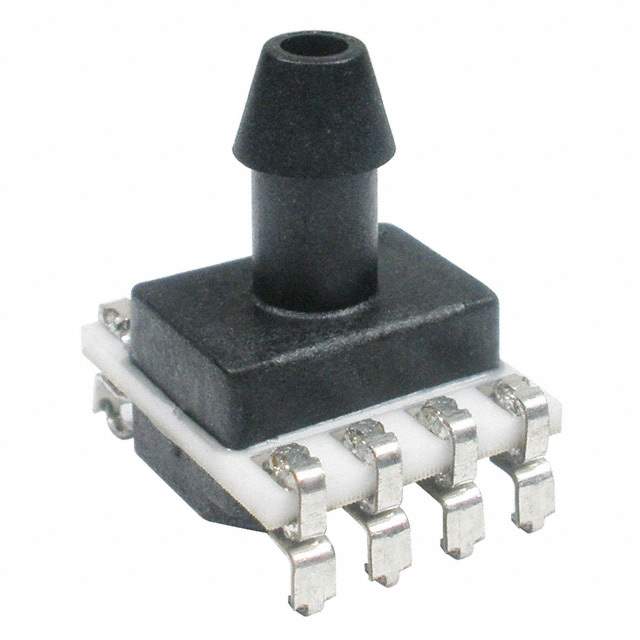

SSCMANN001PD2A5 Real Image
Same model may have multiple batches, images only for reference.

SSCMANN001PD2A5

Part No SSCMANN001PD2A5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor ±1PSI (±6.89kPa) Differential Male - 0.19" (4.93mm) Tube 12 b 8-SMD, J-Lead, Top Port
Datasheet
SSCMANN001PD2A5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±1PSI (±6.89kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure ±10PSI (±68.95kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead, Top Port
Supplier Device Package 8-SMT
Base Product Number SSCMANN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234580-SSCMANN001PD2A5
Ultra Librarian 3D Model Ultra Librarian SSCMANN001PD2A5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SSCMANN001PD2A5 is a pressure sensor designed for use in board mount applications.

  • Series: TruStability® SSC
  • Output: Amplified
  • Temperature Compensation: Yes
  • Output: I2C
  • Pressure Type: Differential
  • Operating Pressure: ±1 PSI (±6.89 kPa)
  • Maximum Pressure: ±10 PSI (±68.95 kPa)
  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Popularity Rating: Low
