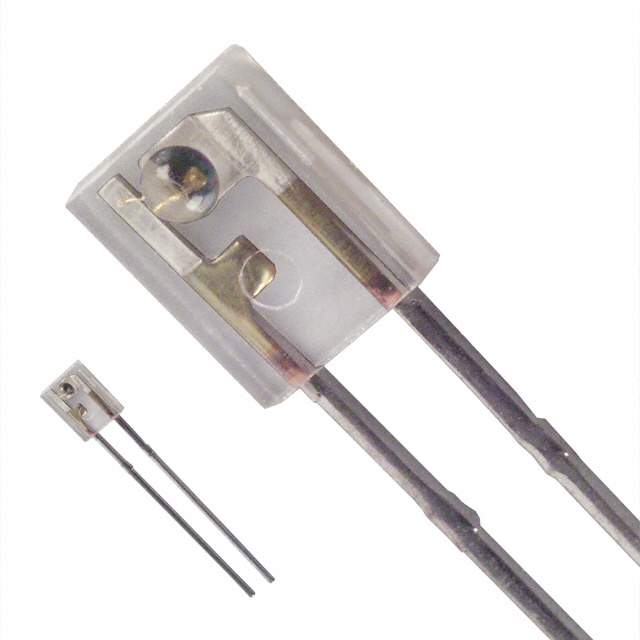

SDP8406-003 Real Image
Same model may have multiple batches, images only for reference.

SDP8406-003

Part No SDP8406-003
Manufacturer Honeywell
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 935NM SIDE VIEW RAD / Phototransistors 935nm Side View Radial
Datasheet
SDP8406-003 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 6.5 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Viewing Angle 50°
Power - Max 100 mW
Mounting Type Through Hole, Right Angle
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Radial
Other Names SDP8406003,480-1956,480-1956R
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234923-SDP8406-003
Ultra Librarian 3D Model Ultra Librarian SDP8406-003 CAD Model

Description

The SDP8406-003 is an optical sensor phototransistor manufactured by Honeywell Sensing and Productivity Solutions.

  • Category: Sensors and Transducers
  • Status: Obsolete
  • Package: 100
  • Maximum Power: 100 mW
  • Maximum Voltage (Collector Emitter Breakdown): 30 V
  • Maximum Current (Collector): 6.5 mA
  • Viewing Angle: 50 degrees
  • Wavelength: 935 nm
  • Mounting: Through hole in a radial package
  • Operating Temperature Range: -40 to 85 degrees Celsius
