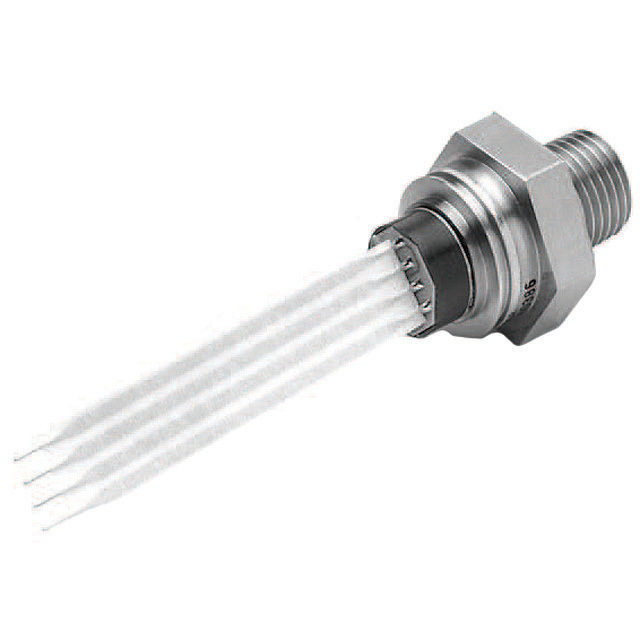

Same model may have multiple batches, images only for reference.
PX2AF1XX300PSCHX Honeywell – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PX2AF1XX300PSCHX

Part No PX2AF1XX300PSCHX
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description PRESSURE TRANSDUCER PSIS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Industrial Automation
Pressure Type Sealed Gauge
Operating Pressure 300PSI (2068.43kPa)
Output Type Analog Current
Output 4 mA ~ 20 mA
Accuracy ±0.25%
Voltage - Supply 8V ~ 30V
Port Size Female - 7/16" (11.11mm) UNF Schrader
Port Style Threaded
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 1000PSI (6894.76kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package Cylinder
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1600515-PX2AF1XX300PSCHX
Ultra Librarian 3D Model Ultra Librarian PX2AF1XX300PSCHX CAD Model

Description
