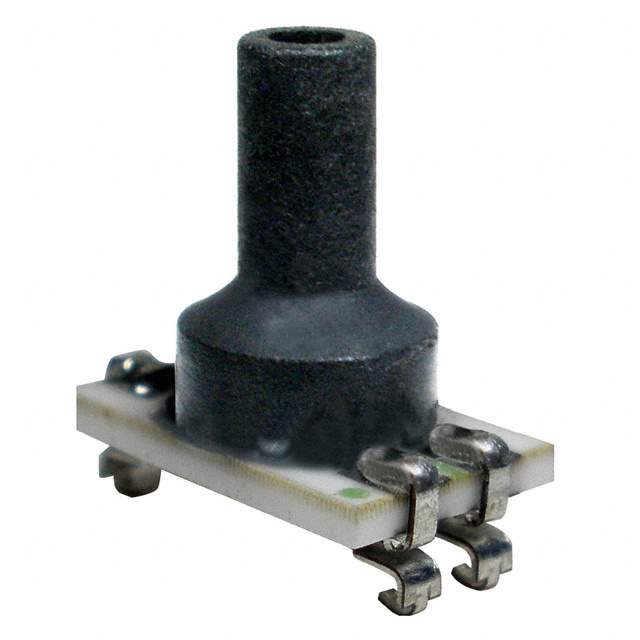

NBPMLNN015PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMLNN015PGUNV

Part No NBPMLNN015PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI GAUG 12V SMT / Pressure Sensor 0psi to 15psi Gage 4-Pin SMT
Datasheet
NBPMLNN015PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 15 PSI (103.42 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.13" (3.18mm) Tube
Port Style Barbless
Termination Style Surface Mount
Maximum Pressure 30 PSI (206.84 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-SMD, J-Lead, Top Port
Win Source Part Number 790552-NBPMLNN015PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPMLNN015PG
Introduction Date June 29, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPMLNN015PGUNV CAD Model

Description

Honeywell Sensing and Productivity Solutions NBPMLNN015PGUNV is a pressure sensor from the NBP series.

  • Pressure Type: Vented Gauge
  • Maximum Pressure: 30 PSI (206.84 kPa)
  • Operating Pressure: 15 PSI (103.42 kPa)
  • Output Type: Wheatstone bridge
  • Output: 0 mV to 75 mV (5V)
  • Accuracy: ±0.25%
  • Termination: Surface mount (SMT)
  • Package: 4-SMD, J-Lead, Top Port
