Same model may have multiple batches, images only for reference.

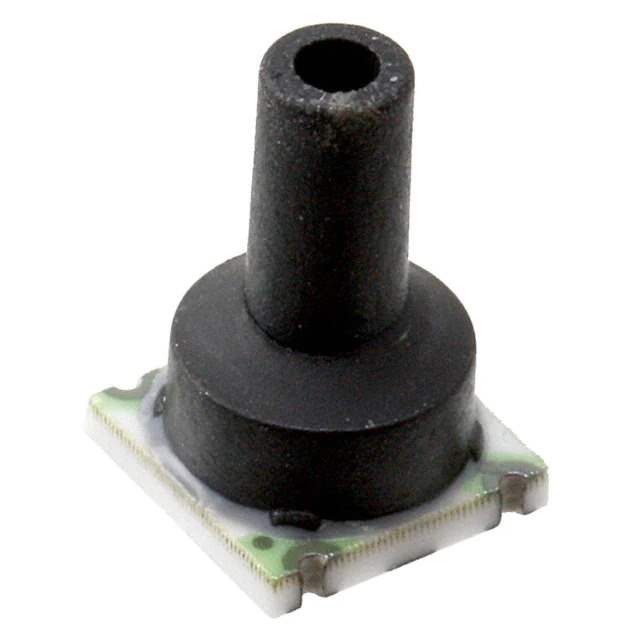

NBPLLNN060PAUNV Real Image
Same model may have multiple batches, images only for reference.

NBPLLNN060PAUNV

Part No NBPLLNN060PAUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 60PSIA 0.13" .105V
Datasheet
NBPLLNN060PAUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series NBP
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Absolute
Operating Pressure 60PSI (413.69kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 105 mV (5V)
Accuracy ±0.25%
Voltage - Supply 1.8V ~ 12V
Port Size Male - 0.13" (3.18mm) Tube
Port Style Barbless
Termination Style SMD (SMT) Tab
Maximum Pressure 120PSI (827.37kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead, Top Port
Base Product Number NBPLLNN
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 646846-NBPLLNN060PAUNV
Ultra Librarian 3D Model Ultra Librarian NBPLLNN060PAUNV CAD Model

Description

The NBPLLNN060PAUNV is an absolute pressure sensor from the NBP series by Honeywell.

  • Output Type: Wheatstone bridge
  • Operating Pressure: 60PSI
  • Maximum Pressure: 120PSI
  • Voltage Supply: 1.8V to 12V
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Mounting Style: Surface Mount
  • Package: 6-SMD, no lead, top port
  • Operating Temperature: -40°C to 125°C
