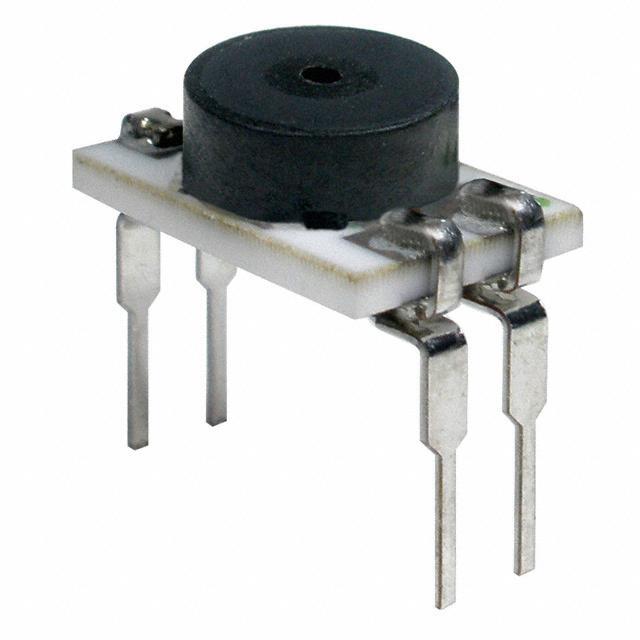

NBPDPNS005PGUNV Honeywell NBPDPNS005PGUNV Real Image
Same model may have multiple batches, images only for reference.
NBPDPNS005PGUNV Honeywell NBPDPNS005PGUNV Real Image
NBPDPNS005PGUNV Honeywell NBPDPNS005PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPDPNS005PGUNV

Part No NBPDPNS005PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 5PSI GAUG 12V DIP / Pressure Sensor 0psi to 5psi Gage 4-Pin DIP
Datasheet
NBPDPNS005PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 5 PSI (34.47 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Style No Port
Termination Style PC Pin
Maximum Pressure 30 PSI (206.84 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-DIP (0.453", 11.50mm), Top Port
Win Source Part Number 790538-NBPDPNS005PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPDPNS005PGUNV
Introduction Date March 11, 2013
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian NBPDPNS005PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBPDPNS005PGUNV is a vented gauge pressure sensor that operates at a pressure of 5 PSI and has a maximum pressure of 30 PSI.

  • Output Type: Wheatstone bridge
  • Accuracy: ±0.25%
  • Operating Supply Voltage: 1.8 V to 12 V
  • Output Range: 0 mV to 75 mV (5V)
  • Termination Style: PC Pin
  • Package: 4-DIP (0.453", 11.50mm), Top Port
