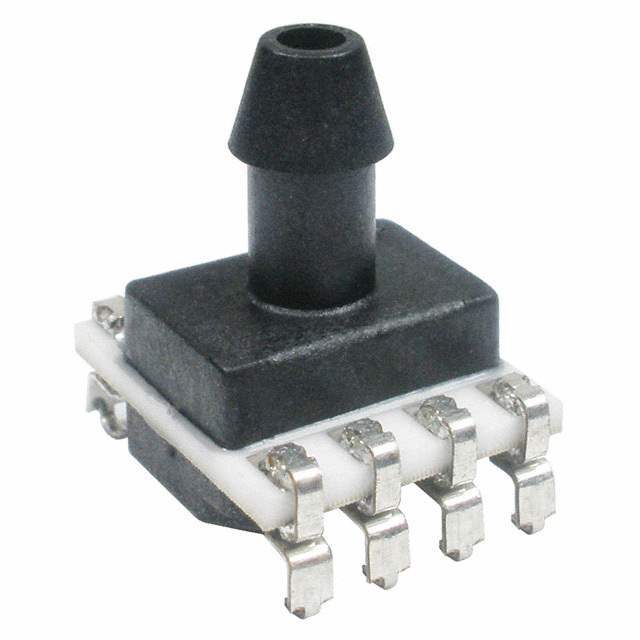

HSCMANN100PGAA3 Honeywell Sensing and Productivity Solutions
Same model may have multiple batches, images only for reference.

HSCMANN100PGAA3

Part No HSCMANN100PGAA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 100PSIG 0.19" 2.97V 8SMD
Datasheet
HSCMANN100PGAA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307145-HSCMANN100PGAA3
Category Sensors, Transducers Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Tube
Part Status Active
Applications Board Mount
Operating Pressure 100PSI (689.48kPa)
Output Type Analog Voltage
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube
Ultra Librarian 3D Model Ultra Librarian HSCMANN100PGAA3 CAD Model

Description

  • Stability and reliability
  • Industry-leading accuracy of ±0.25 %FSS BFSL
  • Port and housing options simplify integration
  • Wide pressure range, from ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2 O to ±150 psi
  • Small package size
  • Extremely low power consumption
