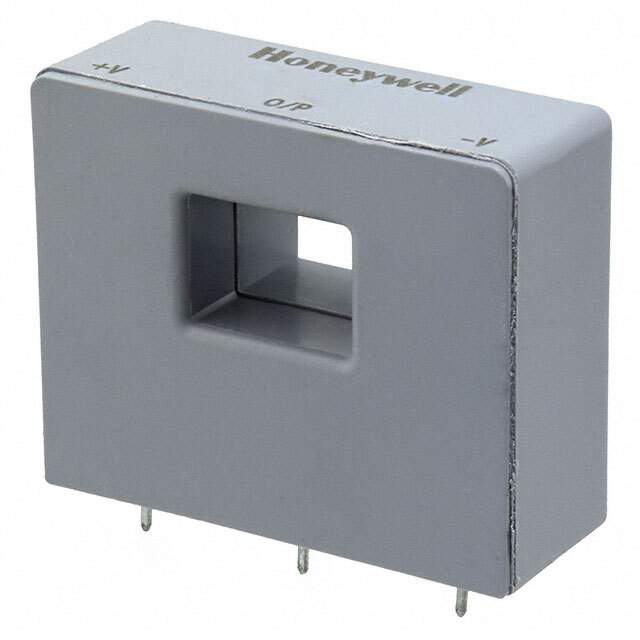

CSNR161 Real Image
Same model may have multiple batches, images only for reference.

CSNR161

Part No CSNR161
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 200A AC/DC / Closed Loop Current Sensor AC/DC Current 15V Automotive 3-Pin
Datasheet
CSNR161 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series CSN
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 200A
Number of Channels 1
Output Ratiometric, Current
Accuracy ±0.5%
Operating Supply Voltage ±12 V ~ 15 V
Response Time 0.5μs
Maximum Supply Current 14mA
Operating Temperature Range -40°C ~ 85°C
Polarization Bidirectional
Mounting Style Through Hole
Package Module, Single Pass Through
Win Source Part Number 771906-CSNR161
Popularity Medium
Supply and Demand Status Limited
Quantity per package 30
Family Name CSNR161
Introduction Date January 31, 1998
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CSNR161 CAD Model

Description

This sensor from Honeywell Sensing and Productivity Solutions has the part number 771906-CSNR161.

  • Series: CSN
  • Packaging: Bulk
  • Mounting Style: Through-hole
  • Operating Temperature Range: -40°C to 85°C
  • Sensor Type: Module, single pass-through
  • Response Time: 0.5μs
  • Output: Ratiometric, current, bidirectional
  • Measurement Type: AC/DC
  • Technology: Hall effect, closed loop
  • Current Sensing: 200A
  • Accuracy: ±0.5%
  • Supply and Demand Status: Limited
