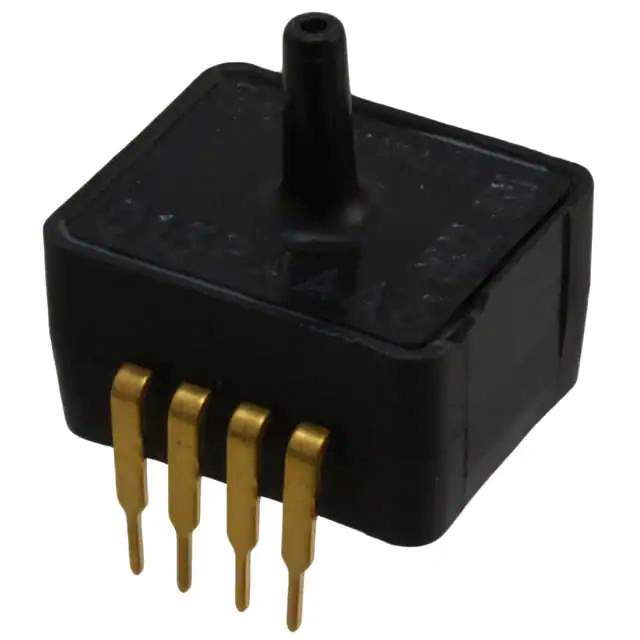

ASDXACX015PAAA5 Real Image
Same model may have multiple batches, images only for reference.

ASDXACX015PAAA5

Part No ASDXACX015PAAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIA 0.09" 4.5V
Datasheet
ASDXACX015PAAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series ASDX
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±2%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.09" (2.31mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -20°C ~ 105°C
Mounting Type Through Hole
Package / Case 8-DIP Module
Base Product Number ASDXACX015
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 846455-ASDXACX015PAAA5
Ultra Librarian 3D Model Ultra Librarian ASDXACX015PAAA5 CAD Model

Description

The ASDXACX015PAAA5 is an absolute pressure sensor manufactured by Honeywell. It is part of the ASDX series, known for its high-quality and reliable performance.

  • Features: Temperature Compensation
  • Output Type: Analog Voltage
  • Output Range: 0.5V to 4.5V
  • Accuracy: ±2%
  • Pressure Range: Up to 15PSI
  • Application: Board Mount
  • Package: Bulk (25 pieces)
  • Voltage Supply: 4.75V to 5.25V
  • Operating Temperature: -20°C to 105°C
  • Mounting Type: Through-Hole
  • Package/Case: 8-DIP Module
