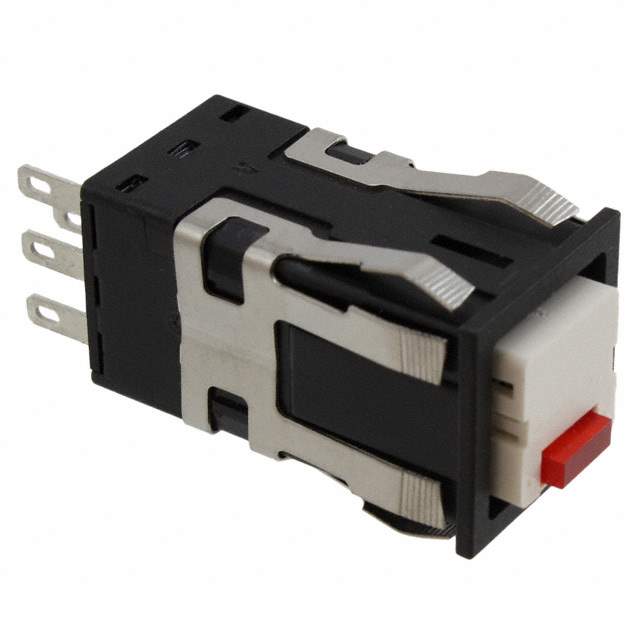

AML22CBC2AA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr Honeywell Sensing and Productivity Solutions
Series AML22
Package Bulk
Mounting Type Panel Mount, Snap-In
Type Standard, Illuminated
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 24 V
Actuator Type Square, Button (Not Included)
Actuator Marking No Marking
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 5 VDC
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions Square - 19.05mm x 19.05mm
Mechanical Life 25,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number AML22
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names 480-4421,AML22CBC2AA-ND
Standard Package 1
Win Source Part Number 1136279-AML22CBC2AA
Ultra Librarian 3D Model Ultra Librarian AML22CBC2AA CAD Model

Description

The Honeywell AML22CBC2AA series is a standard illuminated pushbutton switch used in various electronic applications and manufactured by Honeywell.

  • Packaging: bulk
  • Panel Cutout: square - 19.05mm x 19.05mm
  • Category: switches
  • ECCN: EAR99
  • Circuit: SPDT
  • Voltage Rating: 125V AC and 24V DC
  • Illumination Voltage: 5VDC
  • Mechanical Life: 25,000 cycles
