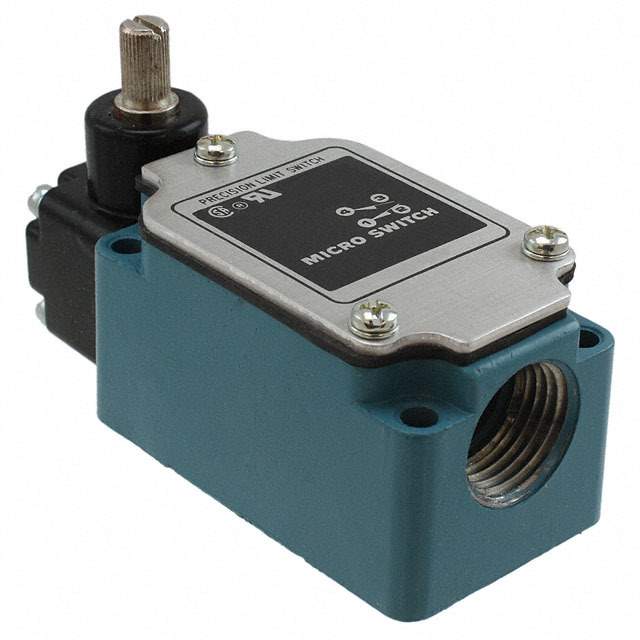

1LS56-L Real Image
Same model may have multiple batches, images only for reference.

1LS56-L

Part No 1LS56-L
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT (DB/DM) Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series LS
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Side Rotary - No Lever
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 11gfm
Release Force 2.070gf
Pretravel 5°
Overtravel 30°
Temperature Range - Operating -29°C ~ 71°C
Operating Position 5°
Base Product Number 1LS56
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names 1LS56-L-ND,1LS56L,480-4075
Standard Package 1
Win Source Part Number 1090200-1LS56-L
Ultra Librarian 3D Model Ultra Librarian 1LS56-L CAD Model

Description

The 1090200-1LS56-L is a limit switch from Honeywell Sensing and Productivity Solutions.

  • Circuit: Single-pole double-throw (SPDT)
  • Switch Function: On-Mom
  • Actuator Type: Side rotary without a lever
  • Operating Force: 11gfm
  • Release Force: 2.070gf
  • Pretravel: 5°
  • Overtravel: 30°
  • Differential Travel: Not specified
  • Ingress Protection Rating: IP67
  • Operating Temperature Range: -29°C to 71°C
  • Mounting: Chassis
  • Voltage Rating: 125V (AC)
  • Current Rating: 10A (AC)
