Same model may have multiple batches, images only for reference.

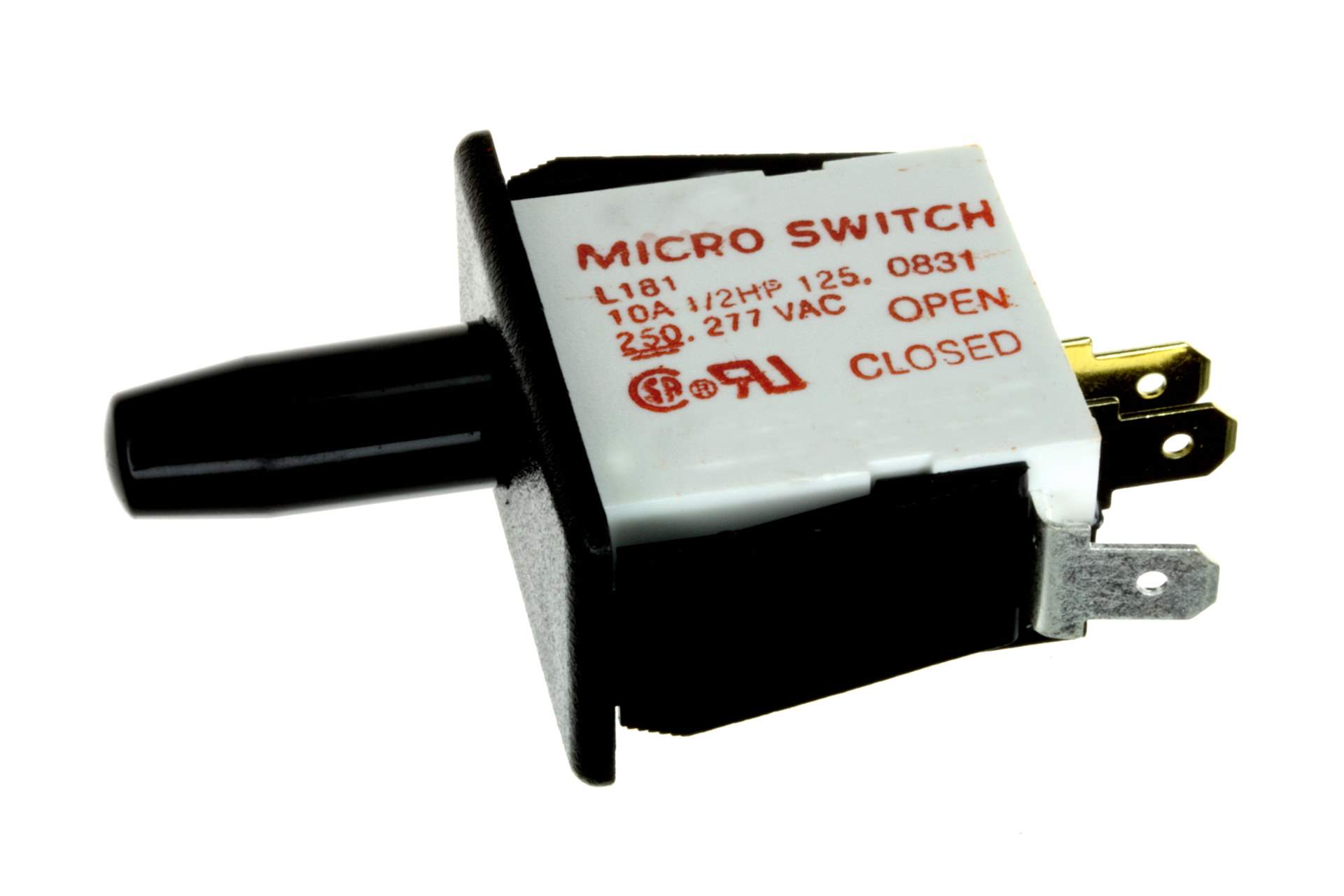

1DM57 Real Image
Same model may have multiple batches, images only for reference.

1DM57

Part No 1DM57
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT Panel Mount, Snap-In
Datasheet
1DM57 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series DM
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 425gf
Release Force 85gf
Differential Travel 0.045" (1.1mm)
Overtravel 0.375" (9.5mm)
Temperature Range - Operating -37°C ~ 82°C
Operating Position 0.750" (19.1mm)
Mechanical Life 1,000,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 480-3202
Standard Package 100
Win Source Part Number 1055652-1DM57
Ultra Librarian 3D Model Ultra Librarian 1DM57 CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1055652-1DM57 is a panel mount snap-in limit switch.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 125 V AC
  • Current Rating: 10A (AC)
  • Operating Force: 425gf
  • Release Force: 85gf
  • Mechanical Life: 1,000,000 cycles
  • Operating Temperature Range: -37°C to 82°C
