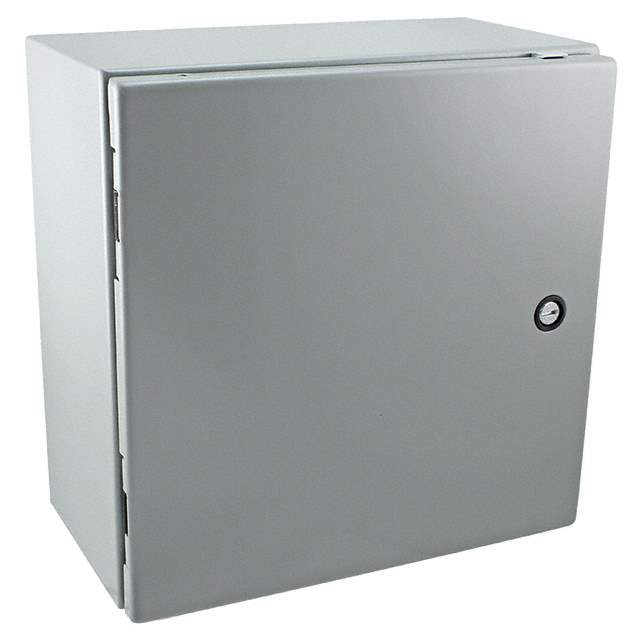

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Hoffman Enclosures, Inc.
Package Bulk
Container Type Box
Dimension 30.000" L x 24.016" W (762.00mm x 610.00mm)
Height 7.992" (203.00mm)
Area (L x W) 720in² (4645cm²)
Design Hinged Door, Lid
Material Metal, Steel
Color Gray
Thickness 16 Gauge
Features Sealing Gasket, Wall Mount
Ratings IP66, NEMA 4,12,13, UL-508A
Weight 49 lbs (22.2 kg)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7310.10.0090
Other Names 78351077470,1441-1448,77470
Standard Package 1
Win Source Part Number 1052059-CSD24308
Ultra Librarian 3D Model Ultra Librarian CSD24308 CAD Model

Description

The CSD24308 is an electronic component manufactured by Hoffman Enclosures, Inc.

  • Color: Gray
  • Design: Box with a hinged door and lid
  • Thickness: 16 gauge
  • Mounting: Wall mounted
  • Weight: 49 lbs (22.2 kg)
  • Area: 720in² (4645cm²)
  • Rating: IP66, NEMA 4,12,13, and UL-508A
  • Package: Bulk
  • RoHS: Non-compliant
