Same model may have multiple batches, images only for reference.

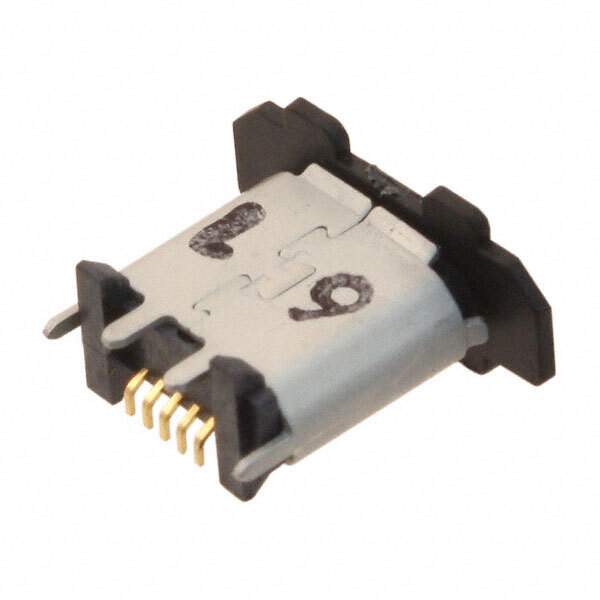

ZX80-B-5P(30) Real Image
Same model may have multiple batches, images only for reference.

ZX80-B-5P(30)

Part No ZX80-B-5P(30)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD / USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Through Hole
Datasheet
ZX80-B-5P(30) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Hirose Electric Co Ltd
Series ZX
Package Tray
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Through Hole
Mounting Feature Vertical
Termination Solder
Features Pick and Place
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.8A
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number ZX80
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Other Names H125262,242-0051-0-30
Standard Package 300
Win Source Part Number 1209552-ZX80-B-5P(30)
Ultra Librarian 3D Model Ultra Librarian ZX80-B-5P(30) CAD Model

Description

The ZX80-B-5P(30) is a USB micro B connector manufactured by Hirose Electric Co Ltd.

  • Category: Connectors, Interconnects
  • Win Source Part Number: 1209552-ZX80-B-5P(30)
  • Mounting Feature: Vertical
  • Mounting Options: Surface or Through Hole
  • Current Rating: 1.8A
  • Temperature Range: -30°C ~ 85°C
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
