Same model may have multiple batches, images only for reference.

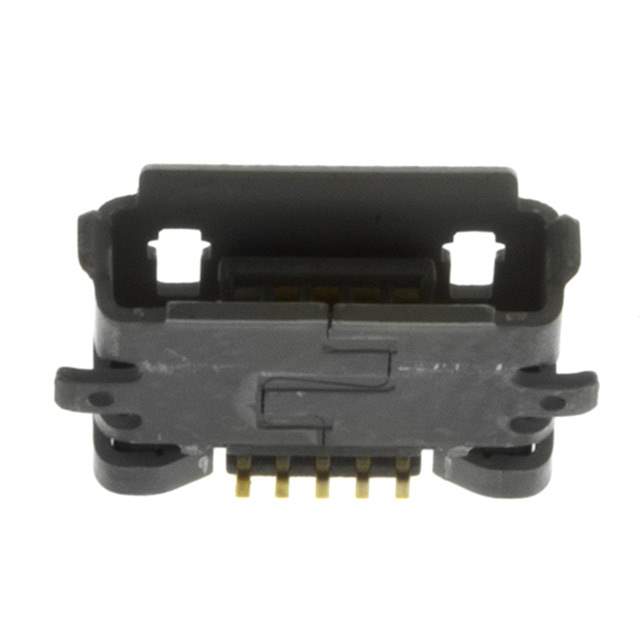

ZX62-AB-5PA(31) Real Image
Same model may have multiple batches, images only for reference.

ZX62-AB-5PA(31)

Part No ZX62-AB-5PA(31)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO AB SMD RA / USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet
ZX62-AB-5PA(31) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Hirose Electric Co Ltd
Series ZX
Package Tape & Reel
Connector Type USB - micro AB
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Bottom Mount, Horizontal
Termination Solder
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Gray
Base Product Number ZX62
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H125279CT,242-0045-7-31,H125279DKR,ZX62-AB-5PA(31)-ND,H125279TR
Standard Package 3,500
Win Source Part Number 972513-ZX62-AB-5PA(31)
Ultra Librarian 3D Model Ultra Librarian ZX62-AB-5PA(31) CAD Model

Description

The Hirose Electric Co Ltd ZX62-AB-5PA(31) is a USB micro AB connector with a pick and place and solder retention feature.

  • Feature: Pick and Place, Solder Retention
  • Shielding: Yes
  • Material Flammability Rating: UL94 V-0
  • Number of Contacts: 5
  • Gender: Receptacle
  • Mounting Type: Surface Mount Right Angle
  • Voltage Rating: 30VAC
  • Current Rating: 1A per contact
  • Standard Package: 3,500 pieces
