Same model may have multiple batches, images only for reference.

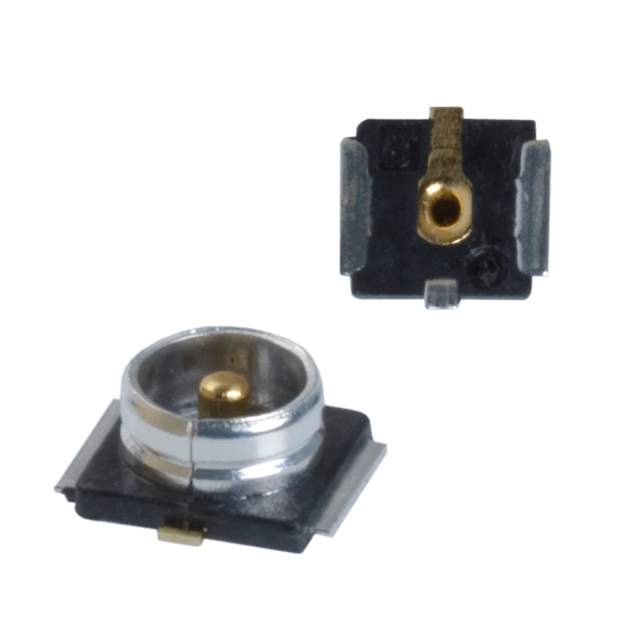

W.FL2-R-SMT-1(10) Real Image
Same model may have multiple batches, images only for reference.

W.FL2-R-SMT-1(10)

Part No W.FL2-R-SMT-1(10)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN W.FL2 RCPT STR 50 OHM SMD
Datasheet
W.FL2-R-SMT-1(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Style Ultra Miniature Coaxial
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Housing Color Black
Body Material Phosphor Bronze
Body Finish Silver
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C to 90°C
Center Contact Material Brass
Mating Cycles 20
Win Source Part Number 036479-W.FL2-R-SMT-1(10)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian W.FL2-R-SMT-1(10) CAD Model

Description

The Hirose Electric Co Ltd Connector is a high-quality product designed for use in electronic components.

  • Connector Type: Receptacle, male pin connector type
  • Fastening Type: Snap-on fastening type
  • Contact Termination: Solder
  • Connector Style: Ultra-miniature coaxial
  • Impedance: 50 Ohm
  • Housing Color: Black
  • Mounting: SMD (SMT) mounting
  • Package: TO-240AA
  • Status: Active product
  • Popularity: Medium
  • Supply and Demand Status: Balance
