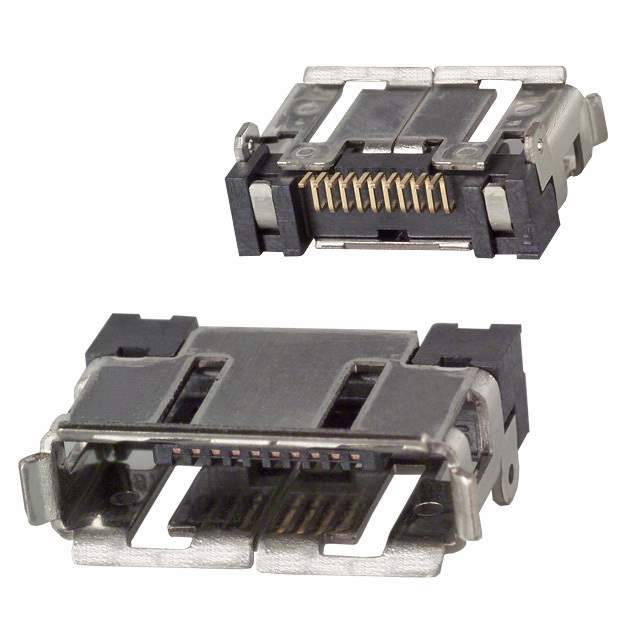

Same model may have multiple batches, images only for reference.

ST60-10P(30)

Name: ST60-10P(30)
Brand: Hirose Electric Co Ltd
SKU: 1029411
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST60-10P(30)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 10P 0.02 GOLD EDGE MNT / 10 Position Receptacle Connector 0.020" (0.50mm) Board Edge, Surface Mount, Right Angle Gold
Datasheet	ST60-10P(30) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Board Edge, Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 80°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Guide, Shielded
Current Rating (Amps)	0.5A
Voltage Rating	100VAC
Applications	General Purpose, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Base Product Number	ST60
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	241-0022-5-30,H125264TR,H125264DKR,H125264CT
Standard Package	1,500
Win Source Part Number	1029411-ST60-10P(30)
Ultra Librarian 3D Model	Ultra Librarian ST60-10P(30) CAD Model

Alternative Products

Description

The ST60-10P(30) is a board-to-cable/wire receptacle connector from Hirose Electric Co Ltd.

Type: Rectangular Connector
Positions: 10
Pitch: 0.020 inches
Fastening: Latch Holder
Mounting: Board Edge, Surface Mount or Right Angle
Contact Material: Copper Alloy
Contact Finish Mating: Gold
Contact Finish Post: Flash
Voltage Rating: 100VAC
Current Rating: 0.5A
Applications: General Purpose and Telecommunications
Package: Tape and Reel
Standard Package: 1,500
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
ECCN: EAR99
Alternative Parts: 505110-1092, 505110-0792, 505110-0992, 1-1734742-0, 1-1734592-0, and 1-1734592-2
