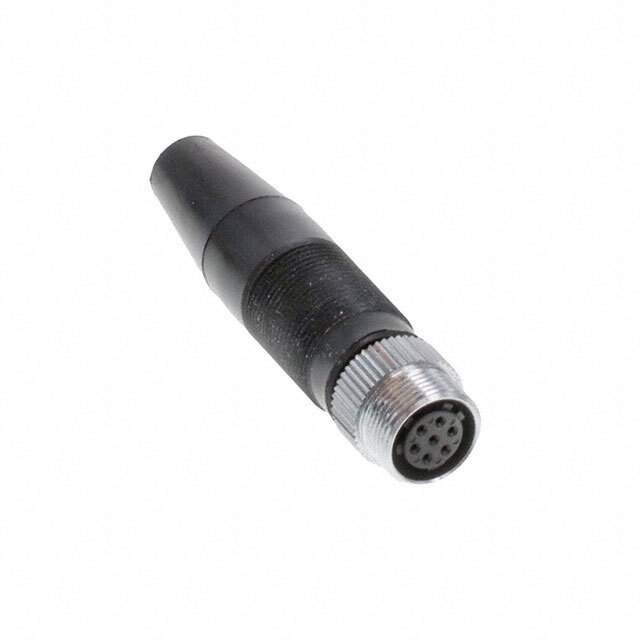

SR30-10JF-7S(71) Real Image
Same model may have multiple batches, images only for reference.

SR30-10JF-7S(71)

Part No SR30-10JF-7S(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series SR30
Package Bulk
Connector Type Jack, Female Sockets
Number of Positions 7
Shell Size - Insert 10
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Brass
Shell Finish Chrome
Contact Finish - Mating Silver
Color Black, Silver
Features Backshell, Clamp, Strain Relief
Shielding Unshielded
Current Rating (Amps) 1A
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -10°C ~ 60°C
Backshell Material, Plating Brass, Nickel
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Insert Material Polyacetal
Applications Radio
Base Product Number SR30
Other Names *SR30-10JF-7S(71),1030330271,HR1725,SR3010JF7S71
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294214-SR30-10JF-7S(71)
Ultra Librarian 3D Model Ultra Librarian SR30-10JF-7S(71) CAD Model

Description

The SR30-10JF-7S(71) is a 7-position circular connector, designed for use in radio applications.

  • Positions: 7
  • Applications: Radio
  • Connector Type: Female Socket
  • Termination: Solder Cup
  • Orientation: Keyed
  • Shell Size: 10
  • Shell Material: Brass with Chrome Finish
  • Insert Material: Polyacetal
  • Contact Material: Phosphor Bronze
  • Mating Finish: Silver
  • Voltage Rating: 100VAC, 140VDC
  • Current Rating: 1A
  • Temperature Range: -10°C to 60°C
  • Shielding: Unshielded
  • Ingress Protection Rating: N/A
  • Features: Backshell, Clamp, and Strain Relief
  • Fastening: Threaded
  • Packaging: Bulk
  • Standard Package: 20
