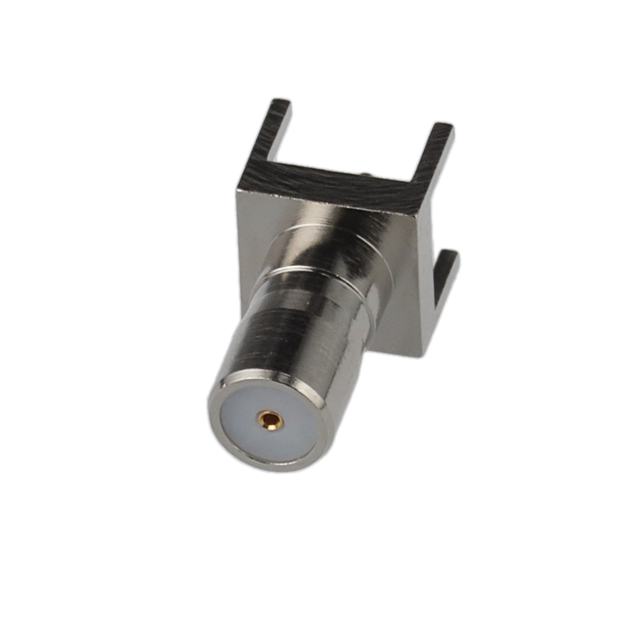

PL71-R-PC(40) Hirose Electric Co Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PL71-R-PC(40)

Part No PL71-R-PC(40)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN COAX RCPT STR 75 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsCoaxial Connectors (RF)Coaxial Connector (RF) Assemblies
Mfr Hirose Electric Co Ltd
Series PL71
Packaging Bag
Part Status Active
Connector Style Coaxial
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohms
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 1 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature -55°C ~ 85°C
Mating Cycles 500
Base Product Number PL71-R
Ultra Librarian 3D Model Ultra Librarian PL71-R-PC(40) CAD Model
