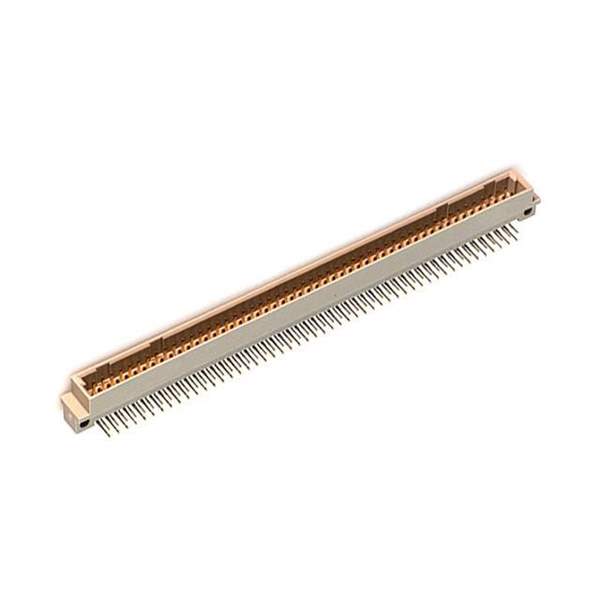

PCN10-100P-2.54DS(72) Real Image
Same model may have multiple batches, images only for reference.

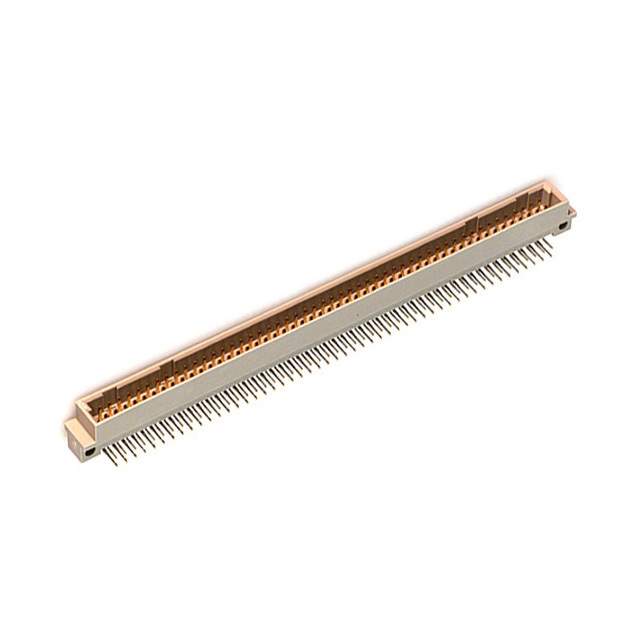

PCN10-100P-2.54DS(72)

Part No PCN10-100P-2.54DS(72)
Manufacturer Hirose Electric Co Ltd
Catalog Backplane Connectors
Description CONN DIN HDR 100POS PCB RA GOLD / 100 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Datasheet
PCN10-100P-2.54DS(72) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Hirose Electric Co Ltd
Series PCN10
Package Tray
Connector Type Header, Male Pins
Number of Positions 100
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Temperature Range - Operating -55°C ~ 85°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number PCN10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H11162,583-0113-5-72,PCN10100P254DS72,*PCN10-100P-2.54DS(72)
Standard Package 10
Win Source Part Number 1001752-PCN10-100P-2.54DS(72)
Ultra Librarian 3D Model Ultra Librarian PCN10-100P-2.54DS(72) CAD Model

Description

The PCN10-100P-2.54DS(72) is a 100-position header connector manufactured by Hirose Electric Co Ltd.

  • Series: PCN10
  • Pin Gender: Male
  • Pitch: 0.100 inches (2.54mm)
  • Mounting: Through-hole, right-angle
  • Positions Loaded: All positions
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Packaging: Tray
  • Standard Package: 10
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Current Rating: 2A
  • Operating Temperature Range: -55°C to 85°C
  • Recommendation: Use in circuits that require high-density interconnects
