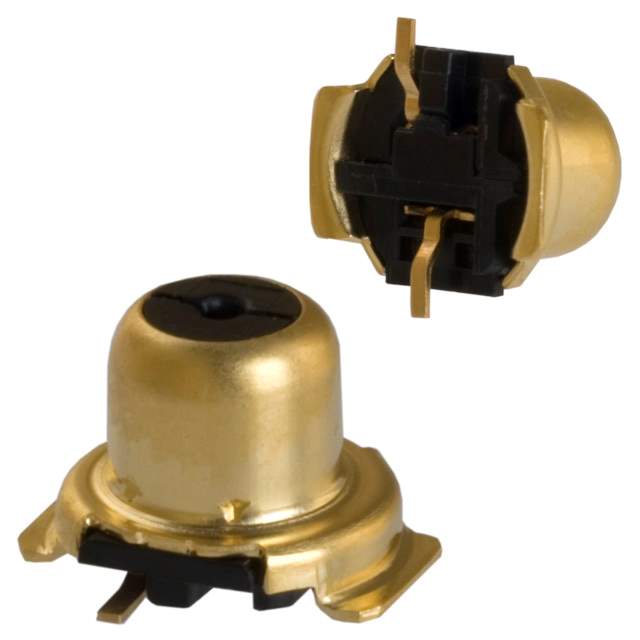

MS-147(06) Real Image
Same model may have multiple batches, images only for reference.

MS-147(06)

Part No MS-147(06)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN COAX SWITCH RCPT STR SMD
Datasheet
MS-147(06) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Style Coaxial Switch - 4.8mm Plug Dia
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Push-Pull
Maximum Input Frequency 6GHz
Features Internal Switch
Housing Color Gold
Body Material Phosphor Bronze
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyamide (PA), Nylon
Temperature Range - Operating -30°C to 85°C
Center Contact Material Beryllium Copper
Mating Cycles 12000
Insertion Loss 0.8dB
Win Source Part Number 024371-MS-147(06)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian MS-147(06) CAD Model

Description

The Hirose Electric Co Ltd MS series is a coaxial switch - 4.8mm plug dia connector that is designed for receptacle, female socket mounting. The connector has an internal switch and a push-pull fastening type. The contact termination is solder and the connector style is a coaxial switch. The connector is rated for an operating temperature range of -30°C to 85°C and has a maximum input frequency of 6GHz. The package is a reel - TR with a quantity of 1500 connectors per package. This connector is a reliable and efficient solution for your connector needs.

  • Series: MS
  • Manufacturer: Hirose Electric Co Ltd
  • Type: Coaxial Switch - 4.8mm Plug Dia Connector
  • Mounting: Receptacle, Female Socket
  • Internal Switch: Yes
  • Fastening Type: Push-Pull
  • Contact Termination: Solder
  • Connector Style: Coaxial Switch
  • Operating Temperature: -30°C to 85°C
  • Maximum Input Frequency: 6GHz
  • Package: Reel - TR
  • Quantity per Package: 1500
