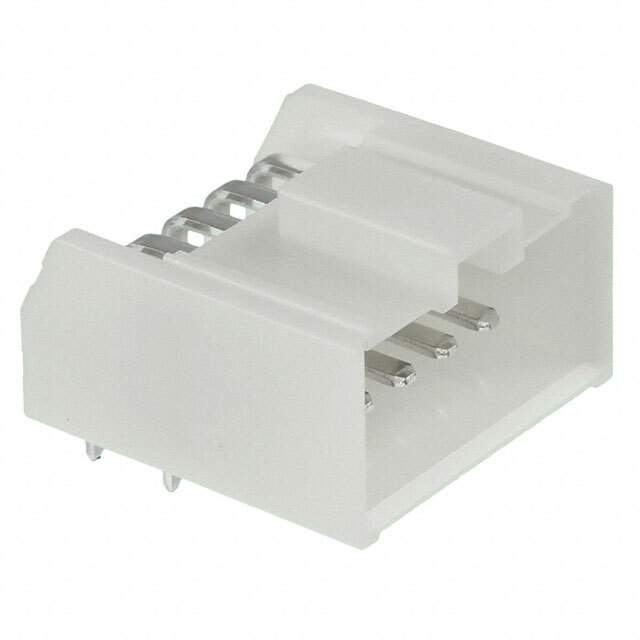

MDF6-10DP-3.5DS(05)

Get a Quote

Part No	MDF6-10DP-3.5DS(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 3.5MM / Connector Header Through Hole, Right Angle 10 position 0.138" (3.50mm)
Datasheet	MDF6-10DP-3.5DS(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	MDF6
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.138" (3.50mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.197" (5.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.220" (5.59mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	-
Insulation Height	0.445" (11.30mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Copper
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	-
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	-
Temperature Range - Operating	-35°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	-
Voltage Rating	300V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	100 pcs
Win Source Part Number	1382882-MDF6-10DP-3.5DS(05)
Ultra Librarian 3D Model	Ultra Librarian MDF6-10DP-3.5DS(05) CAD Model

Alternative Products

Description

The MDF6-10DP-3.5DS(05) is a male pin header connector from Hirose Electric Co Ltd.

Series: MDF6
Positions: 10
Features: None
Connector Type: Header
Contact Type: Male Pin
All Positions Loaded: Yes
Number of Rows: 2
Termination: Solder
Fastening Type: Latch Holder
Package: Bulk
Pieces: 100
Contact Material: Brass
Voltage Rating: 300V
Insulation Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Mounting Type: Through Hole, Right Angle
Shrouded: 4 Wall
Row Spacing: 0.197" (5.00mm)
Operating Temperature: -35°C to 85°C
Product Status: Obsolete
