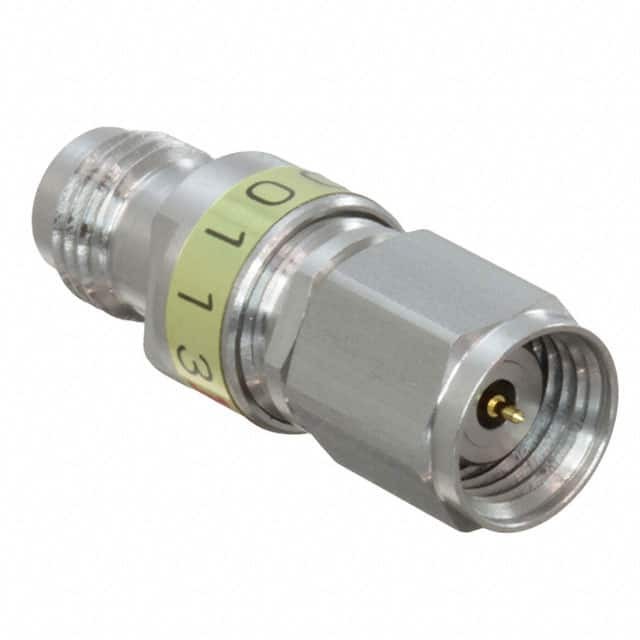

HV-AT(20)-PJ
Same model may have multiple batches, images only for reference.

HV-AT(20)-PJ

Part No HV-AT(20)-PJ
Manufacturer Hirose Electric Co Ltd
Catalog Attenuators
Description RF ATTENUATOR 20DB 50OHM 1.85MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Hirose Electric Co Ltd
Series 1.85mm
Package Bulk
Product Status Active
Attenuation Value 20dB
Frequency Range 0 Hz ~ 67 GHz
Power (Watts) 1W
Impedance 50 Ohms
Package / Case 1.85mm In-Line Module
Base Product Number HV-AT
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 847149-HV-AT(20)-PJ
Ultra Librarian 3D Model Ultra Librarian HV-AT(20)-PJ CAD Model

Description

The Hirose Electric Co Ltd 847149-HV-AT(20)-PJ is an attenuator designed for RF and wireless applications.

  • Series: 1.85mm
  • Packaging: Bulk
  • Standard Package: 1
  • Impedance: 50 Ohms
  • Power (Watts): 1W
  • Frequency: 0 Hz ~ 67 GHz
  • Attenuation Value: 20dB
  • Package / Case: 1.85mm In-Line Module
  • MSL: 1 (Unlimited)
  • Product Status: Active
