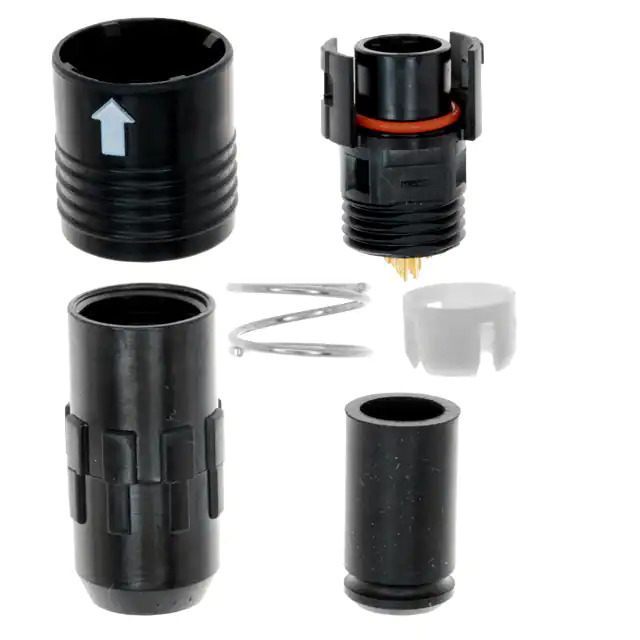

HR30-8P-12P(71) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

HR30-8P-12P(71)

Part No HR30-8P-12P(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 12P GOLD SLDR CUP
Datasheet
HR30-8P-12P(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HR30
Package Tray
Product Status Active
Connector Type Plug, Male Pins
Number of Positions 12 (Power)
Shell Size - Insert 8
Shell Size, MIL -
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Shell Finish -
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Strain Relief
Shielding -
Current Rating (Amps) 2A
Voltage Rating 30VAC, 42VDC
Cable Opening 0.244" ~ 0.276" (6.20mm ~ 7.00mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Polyphenylene Sulfide (PPS)
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Marine, Medical
Base Product Number HR30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1366099-HR30-8P-12P(71)
Ultra Librarian 3D Model Ultra Librarian HR30-8P-12P(71) CAD Model

Description

The HR30-8P-12P(71) is a circular connector assembly from Hirose Electric Co Ltd.

  • Series: HR30
  • Applications: Industrial, Marine, Medical
  • Connector Type: Plug
  • Contact Gender: Male
  • Termination: Solder Cup
  • Current Rating: 2A
  • Voltage Rating: 30VAC, 42VDC
  • Ingress Protection: IP67/IP68
  • Shell Material: Polybutylene Terephthalate (PBT)
  • Insert Material: Polyphenylene Sulfide (PPS)
  • Housing Color: Black
  • Shell Size: 8
  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Push-Pull
  • Contact Finish Mating: Gold, 8.00µin (0.203µm)
