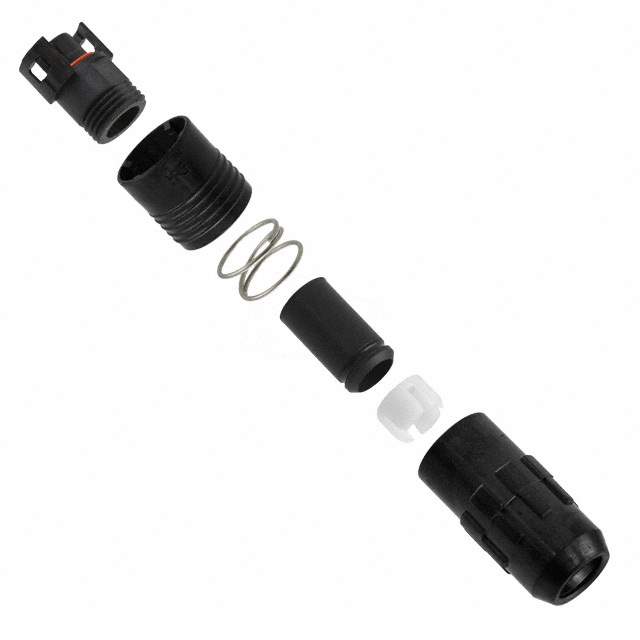

HR30-7P-10SC(71) Real Image
Same model may have multiple batches, images only for reference.

HR30-7P-10SC(71)

Part No HR30-7P-10SC(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN PLG HSG FMALE 10POS INLINE / 10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Strain Relief
Datasheet
HR30-7P-10SC(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 10
Shell Size - Insert 7
Contact Type Crimp
Mounting Free Hanging (In-Line)
Fastening Type Push-Pull
Orientation Keyed
Shell Material Polyphenylene Sulfide (PPS)
Housing Color Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Strain Relief
Shielding Unshielded
Note Contacts Not Included
Includes 6 pcs - 2 pc Connector, 1 Backshell, 1 Bushing, 1 Cage Clamp, 1 Spring
Insert Material Polyphenylene Sulfide (PPS)
Contact Shape Square
Temperature Range - Operating -25°C ~ 85°C
Base Product Number HR30
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number *HR30-7P-10SC(71),HR307P10SC71,130-0013-2-71,HR584
Standard Package 50
Win Source Part Number 1334555-HR30-7P-10SC(71)
Ultra Librarian 3D Model Ultra Librarian HR30-7P-10SC(71) CAD Model

Description

The Hirose Electric Co Ltd HR30-7P-10SC(71) plug housing connector is a high-quality circular connector housing designed for female sockets.

  • Fastening Type: Push-Pull
  • Features: Backshell and Strain Relief
  • Contact Type: Crimp
  • Shielded: Unshielded
  • Housing Color: Black
  • Material: Polyphenylene Sulfide (PPS)
  • Flammability Rating: UL94 V-0
  • Ingress Protection: IP67/IP68 (Dust Tight and Waterproof)
  • Mounting: Free-Hanging (In-Line)
  • Shell Size: 7
  • Includes: 6 pieces (2 connector pieces, 1 backshell, 1 bushing, 1 cage clamp, and 1 spring)
  • Contact Shape: Square
  • Operating Temperature: -25°C to 85°C
