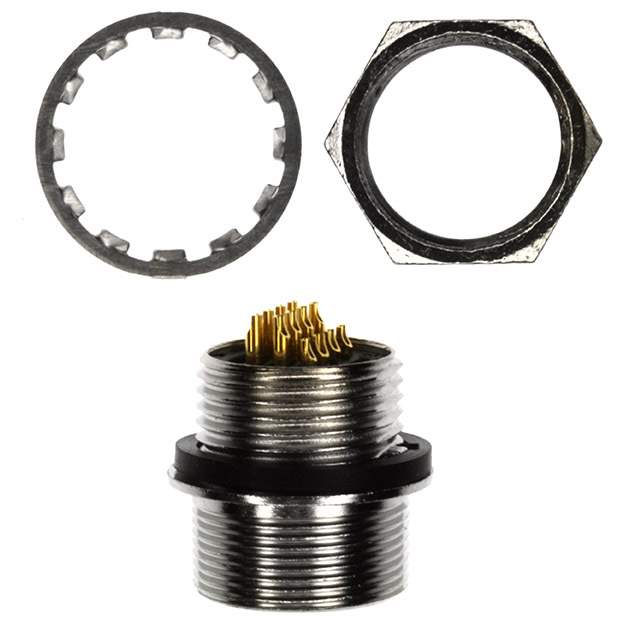

HR25-9TR-12P(71) Real Image
Same model may have multiple batches, images only for reference.

HR25-9TR-12P(71)

Part No HR25-9TR-12P(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 12P GOLD SLDR CUP / 12 Position Circular Connector Receptacle, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HR25
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 12
Shell Size - Insert 9
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Material Flammability Rating UL94 V-0
Shielding Shielded
Current Rating (Amps) 1A
Voltage Rating 30VAC, 42VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial
Base Product Number HR25
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1340576-HR25-9TR-12P(71)
Ultra Librarian 3D Model Ultra Librarian HR25-9TR-12P(71) CAD Model

Description

The HR25 series is a 12 position circular connector assembly with a receptacle, male pins connector type from Hirose Electric Co Ltd.

  • Temperature Range: -25°C to 85°C
  • Current Rating: 1A
  • Application: Industrial
  • Package: Bulk
  • Lifecycle Status: Balanced Supply and Demand
