Same model may have multiple batches, images only for reference.

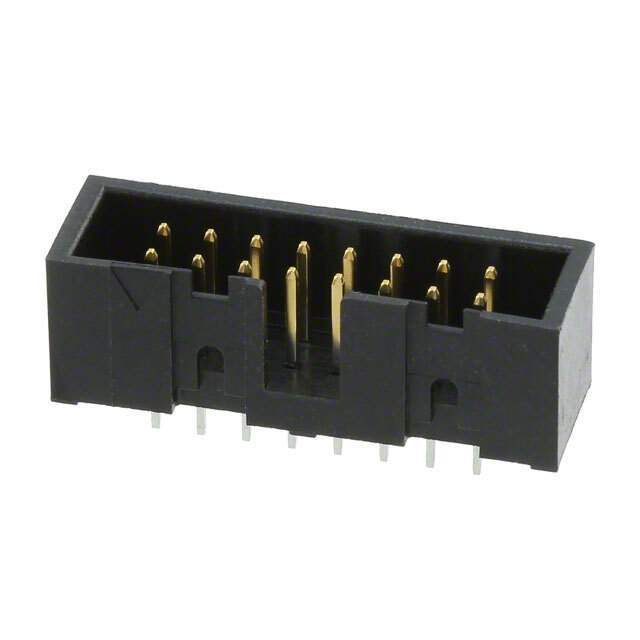

HIF3FC-16PA-2.54DSA(71) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

HIF3FC-16PA-2.54DSA(71)

Part No HIF3FC-16PA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM
Datasheet
HIF3FC-16PA-2.54DSA(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects >Rectangular Connectors> Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging  Tray
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian HIF3FC-16PA-2.54DSA(71) CAD Model

Description

  • Flux Prevention HIF3FC series straight type takes complete flux tight measures.
  • Low Profile The pin header is a low profile of height 9.2mm. The board to board clearance is 12.2mm for stacking connection.
